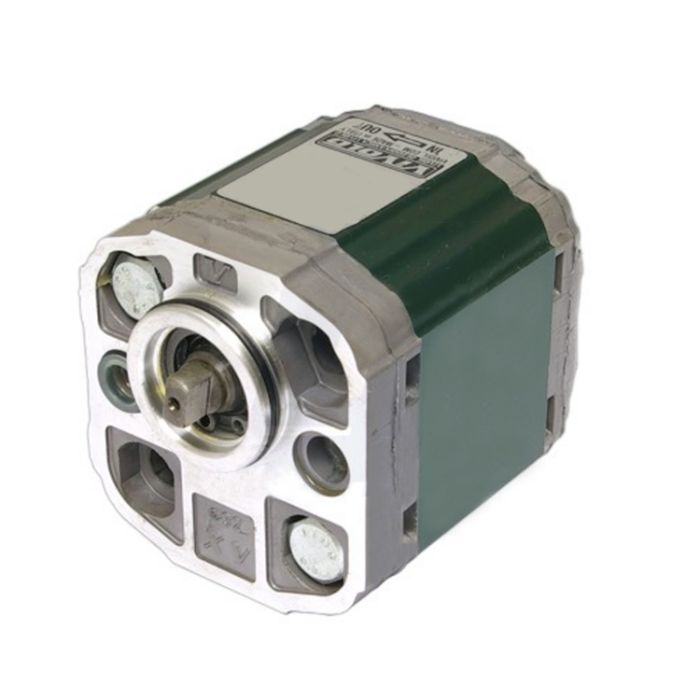

4.16 cc Gear pump left with 10-5 mm flat shaft group 1

4.16 cc Gear pump left with 10-5 mm flat shaft group 1

Technical specifications:

• Pump group: 1
• Cc per revolution: 4.16cc
• Direction of rotation: left
• Max. temperature range: -15ºC - +80ºc.
• Pump: gear pump (mini power pack)
• Pump housing Material: geëextruded aluminum series 7000
• Flange Material: cast aluminum alloy
• Design: pump with pressure connection at the front with O-ring and supconnection ring seal. Suction connection at the rear of the pump.
• Seal: acrylonitrile A727 70sh
• shaft: 10-5mm flat shaft
• Flange type: Centering Flange 32 mm group 1
• Min. revolutions: 700 rpm
• Max. revolutions: 6000 rpm
