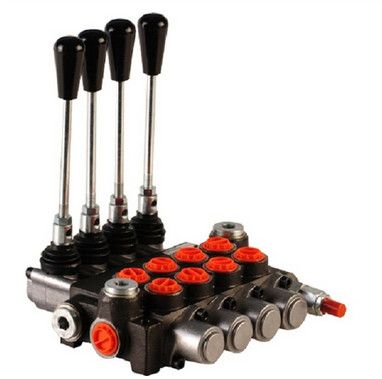

4P40 4 section control valve 40 L/min manual operation

Directional Valve Manual 4P40 1/2"

Technical specifications:

• Type: 4P40
• Number of sections: 4
• Control valve type: 4/3
• Max. litres per minute: 40
• Plunger: A = AB closed and PT open
• Operation: manual, spring return (detent optional)
• P connection: 1/2" BSP
• T connection: 1/2" BSP
• A and B connection: 3/8" BSP
• Pressure relief valve: yes, adjustable 10-250 bar
• Maximum pressure: 320 bar
• Maximum pressure at T: 50 bar
