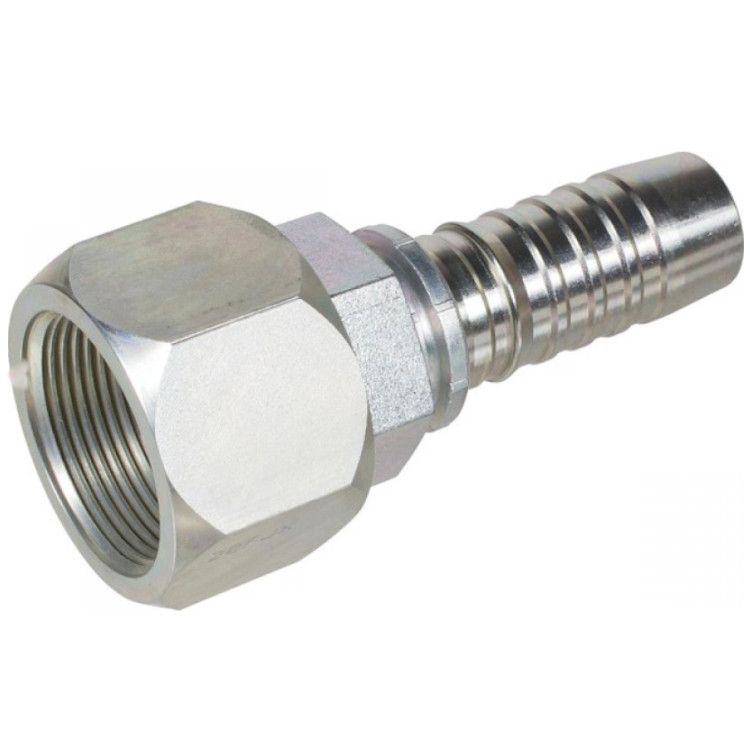

5/16" DN press fitting 3/4" 16h UNF female

5/16" DN press coupling 3/4" 16h UNF female

• For, among other things, connecting hydraulic hoses and pipes
• Material: steel
• Inner cone: 37º

Technical specifications:

• Dimension DN: 5/16"
• Dimension R1: JIC 3/4" 16h UNF
• Dimension L: 47 mm
• Dimension L1: 28 mm
• Dimension HEX 1: 24 mm
• Dimension ØC: 5.5 mm
