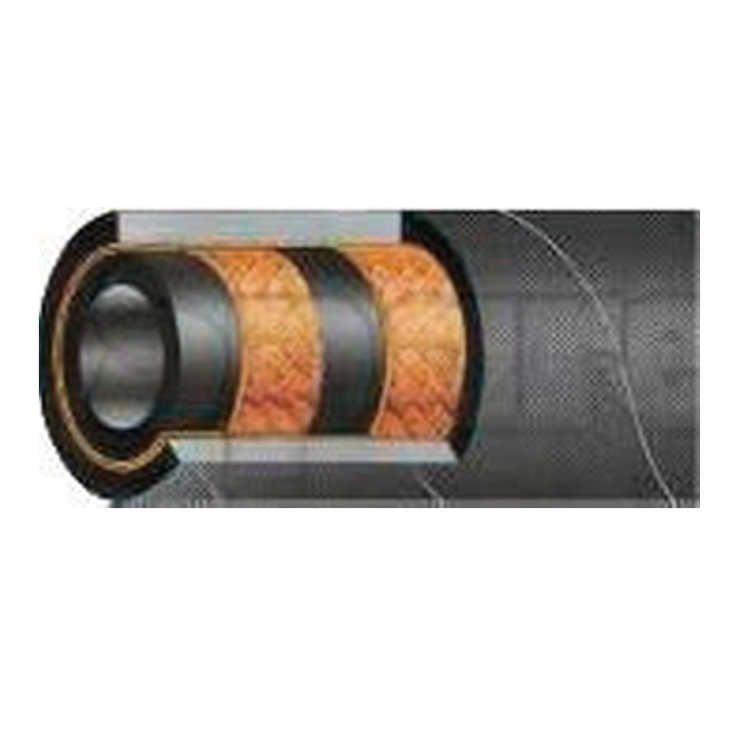

5/16" hydraulic hose (2SC) per metre
€5.33
In stock
5/16" hydraulic hose (2SC) per metre
- Hose type: EN 857 2SC
- Inner composition: special synthetic rubber, resistant to hydraulic oil
- Reinforcement composition: 2 braided layers of steel
- Outer composition: synthetic rubber, resistant to oil, wear and weather influences
This hydraulic hose complies with various internationally recognized quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Navy)
- ISO9001:2015
Technical features:
- DN size: 5/16"
- Inside diameter: 8.3mm
- Outside diameter: 14.6mm
- Operating pressure: 350 bar / 5075 psi
- Burst pressure: 1400 bar / 22050 psi
- Vacuum: -0.95 bar
- Bending radius: 85mm
- Weight: 0.30kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius
