5/16" hydraulic hose SAE 100 R7 per meter
€5.59
In stock

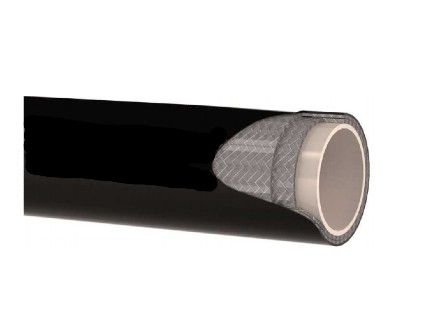

5/16" hydraulic hose SAE 100 R7 per meter
- Hose type: SAE 100 R7
- Composition inside: polyester elastomer
- Composition reinforcement: 1 or 2 braids of synthetic fibers
- Composition of exterior: black perforated polyurethane
This hydraulic hose complies with various internationally recognised quality marks, including:
- DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
- DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
- DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
- DNV GL Module B (Marine)
- ISO9001:2015
Technical specifications:
- DN size: 5/16"
- Inner diameter: 8.1 mm
- Outer diameter: 12.2 mm
- Working pressure: 190 bar / 2700 psi
- Burst pressure: 760 bar / 10800 psi
- Bending radius: 45 mm
- Weight: 0.130 kg/m
- Working temperature: -40 degrees to + 100 degrees Celsius
