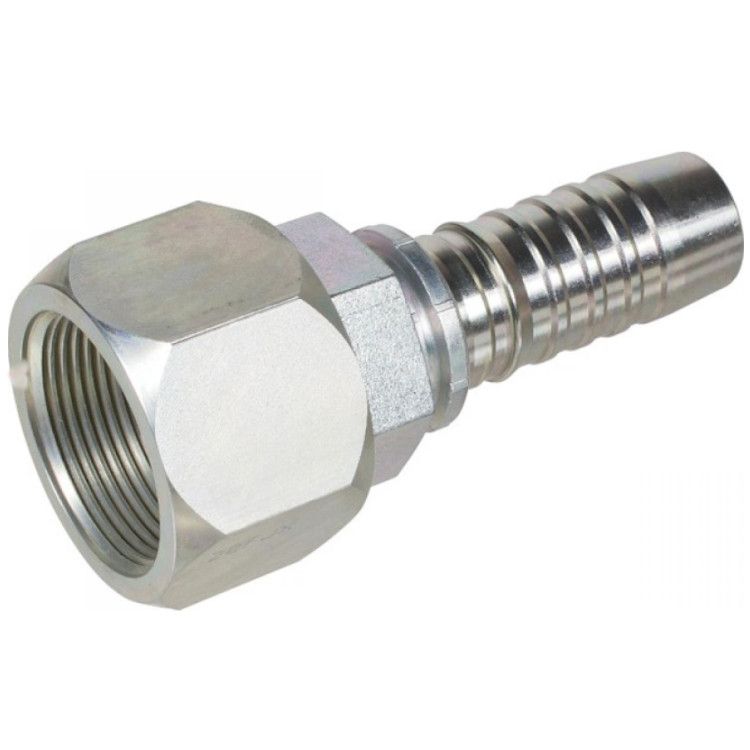

5/8" DN press fitting 1" 1/16 12h UNF female

5/8" DN press coupling 1" 1/16 12h UNF female

• For, among other things, connecting hydraulic hoses and pipes
• Material: steel
• Inner cone: 37º

Technical specifications:

• Dimension DN: 5/8"
• Dimension R1: JIC 1" 1/16 12h UNF
• Dimension L: 56.3mm
• Dimension L1: 34 mm
• Dimension HEX 1: 32 mm
• Dimension ØC: 12 mm
