5/8" hydraulic hose (2SC) per metre

€8.53
In stock

5/8" hydraulic hose (2SC) per metre

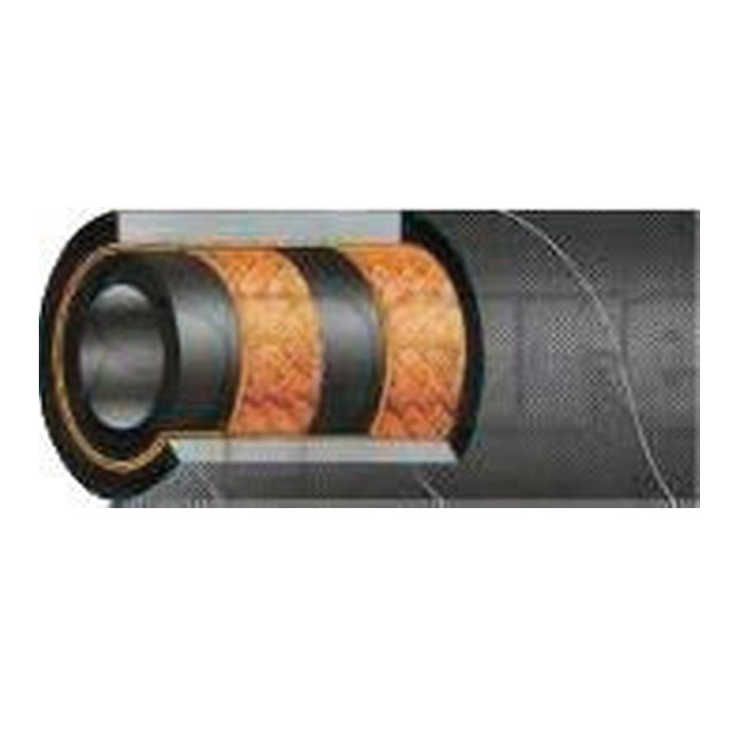

  • Hose type: EN 857 2SC
  • Inner composition: special synthetic rubber, resistant to hydraulic oil
  • Reinforcement composition: 2 braided layers of steel
  • Outer composition: synthetic rubber, resistant to oil, wear and weather influences

This hydraulic hose complies with various internationally recognized quality marks, including:

  • DNV GL rules for classification – Ships Pt.4 Ch.6 Piping systems
  • DNVGL-OS-D101 – Marine and machinery systems and equipment, Edition January 2018
  • DNV GL class program DNVGL-CP-0183 – Type approval – Flexible hoses
  • DNV GL Module B (Navy)
  • ISO9001:2015

Technical features:

  • DN size: 5/8"
  • Inside diameter: 16.4mm
  • Outside diameter: 23.9mm
  • Operating pressure: 250 bar / 3625 psi
  • Burst pressure: 1400 bar / 22050 psi
  • Vacuum: -0.80 bar
  • Bending radius: 170mm
  • Weight: 0.61kg/m
  • Working temperature: -40 degrees to + 100 degrees Celsius
*These hoses are specially cut to size and can therefore not be returned
