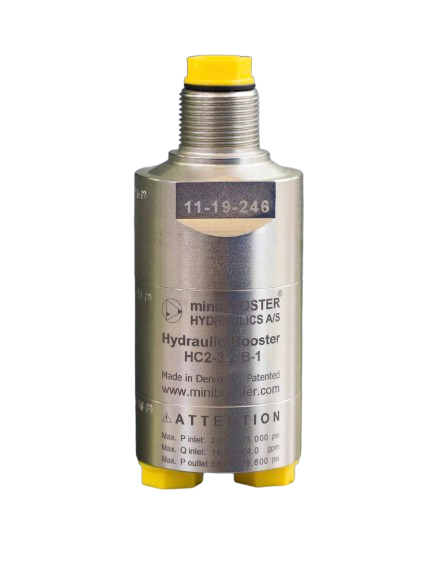

5.0 x Hydraulic pressure booster | max 800 bar

5.0 x Hydraulic pressure booster | max 800 bar
Compact hydraulic pressure booster suitable for use in applications where building and maintaining high pressure is required. This booster increases the delivered pressure to a higher Outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The outlet pressure adjustment is carried out by varying the supplied pressureërun.

Technical properties:

• Boosting ratio: 5.0
• Max. amplified Outlet flow: 1.6 l/min
• Max. inlet flow: 14 l/min
• Incoming pressure: 160 bar
• Max. output pressure: 800 bar
• With controlled check valve - Dump Valve DV
• Weight: 1kg
• Brand: Minibooster

Connections:
