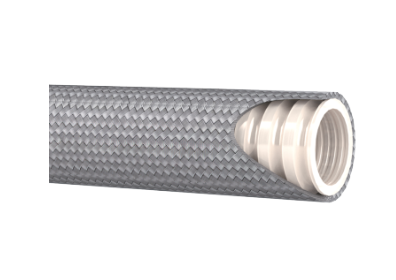

5/8" DN PTFE Teflon hose stainless steel braided ribbed
€28.90
In stock
5/8" DN PTFE Teflon hose stainless steel braided ribbed
Technical specifications:
- Hose type: PTFE hose
- Inside composition: braided corrugated tube in PTFE, fire resistant, chemically inert. Suitable for use in food, according to FDA standard.
- Reinforcement composition: braided stainless steel AISI 304
Technical specifications:
- DN size: 5/8"
- Min. inside diameter: 16 mm
- Inside diameter max.: 17 mm
- Outside diameter min.: 21.5mm
- Outside diameter max.: 23mm
- operating pressure: 80 bar / 1160 psi
- Burst pressure: 240 bar / 3480 psi
- Bending radius: 50mm
- Weight: 0.32kg/m
- Working temperature: -70 degrees to + 260 degrees Celsius
