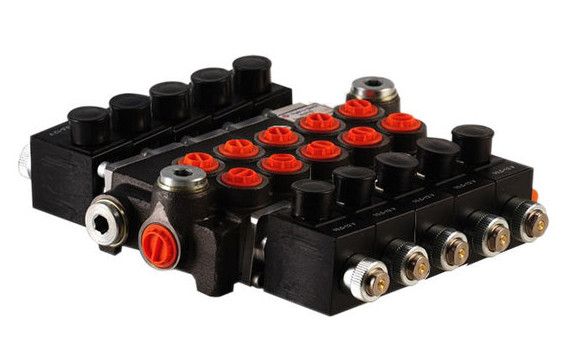

5Z50 5 section control valve 50l/min 12V electric

5Z50 5 section control valve 50l/min 12V electric

• Model:5Z5012V

• Number of sections:5
• control valve type:4/3
• Max. liters per minute:50
• Spool:A = AB closed and PT open
• Operation:12V electric
• P connection:1/2" bsp
• T connection:1/2" bsp
• A and B connection3/8" bsp
• Pressure relief valve:Yes, adjustable 10-250 bar
• Maximum pressure:320 bar
• Maximum pressure on T:50 bar
• Operation: Spring centering
