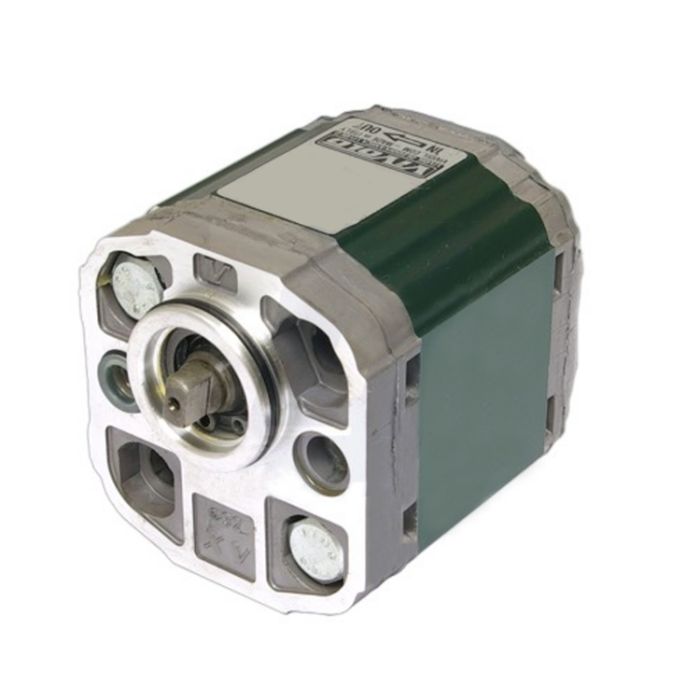

6.50 cc Gear pump left with 10-5 mm flat shaft group 1

€227.20

Out of stock

✓ Worldwide shipping
✓ In stock, shipping within 1 business day
✓ Wide selection of hydraulic pumps

6.50 cc Gear pump left with 10-5 mm flat shaft group 1

Technical specifications:

Pump group: 1
Cc per revolution: 6.50cc
Direction of rotation: left
Max. temperature range: -15ºC - +80ºc.
Pump: gear pump (mini power pack)
Pump housing Material: geëextruded aluminum series 7000
Flange Material: cast aluminum alloy
Design: pump with pressure connection at the front with O-ring and supconnection ring seal. Suction connection at the rear of the pump.
Seal: acrylonitrile A727 70sh
shaft: 10-5mm flat shaft
Flange type: Centering Flange 32 mm group 1
Min. revolutions: 700 rpm
Max. revolutions: 6000 rpm
