7.5kW, 24V, electric motor with pre-assembled gear pump, pump group 2

7.5kW, 24V, electric motor with pre-assembled gear pump, pump group 2

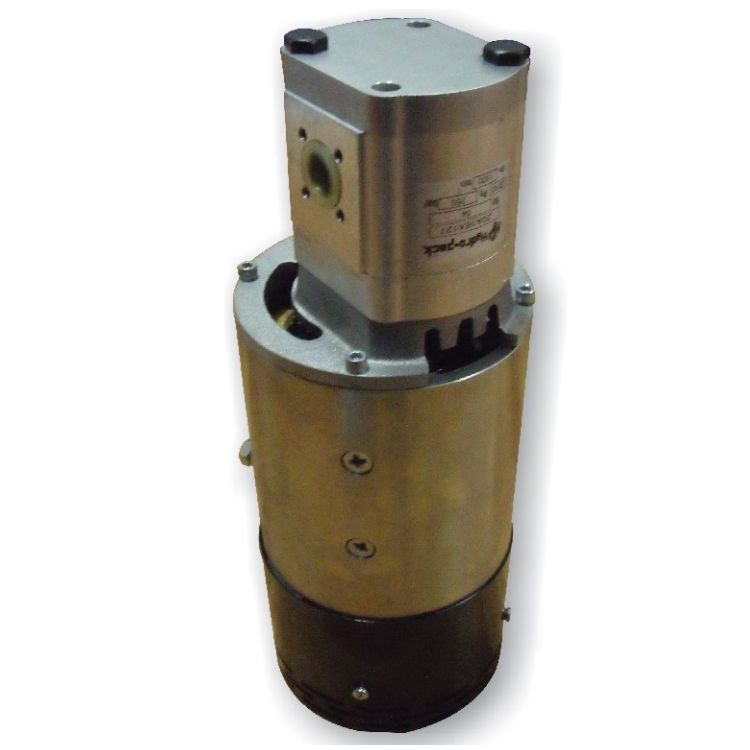

Complete motor/pump combination equipped with 7.5 kW electric motor and 10cc gear pump group 2. The motor used in this type of power pack has been specially developed so that no lantern piece and flexible coupling are required. The pump is mounted directly on the engine.

Choice 1: Pump size in configurator (cc/rev.):

Indicate here what the desired volume is of the gear pump to be mounted on the motor/pump combination.

Electric motor technical characteristics:

• Model: HPPM-7.5-24
• Voltage: 24V
• Power: 7.5kW
• Speed: 2600RPM

Gear pump technical features:

• Pump group: 2
• CC per revolution: 4.5-15 cc
• Direction of rotation: right
• Pump Type: Gear Pump
• Axle: flat axle
• Inlet connection pump flange: 30 / 40 mm (3 or 4 holes) | Depending on the pump size
• Outlet connection pump flange: 30 mm (3 or 4 holes)
