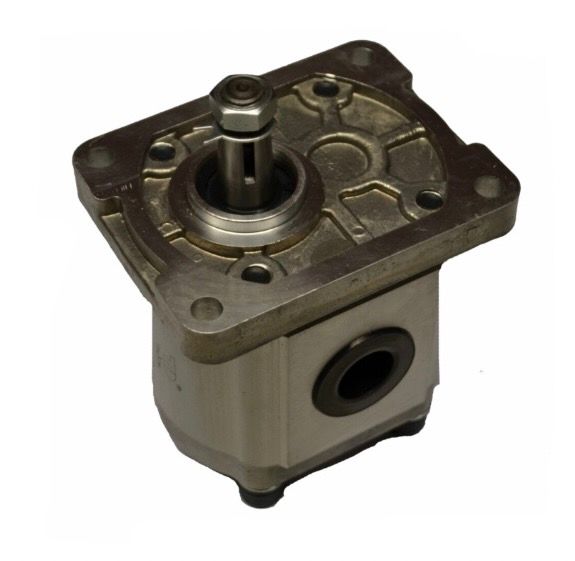

8 cc Gear pump left with 1:8 conical shaft group 10

8 cc Gear pump left with 1:8 conical shaft group 10

Technical specifications:

• Pump group: 10
• Cc per revolution: 8 cc
• Inlet size (R1): 1/2" BSP
• Exhaust size (R2): 3/8" BSP
• Direction of rotation: left
• Pump: gear pump
• Flange and cover Material: aluminum
• shaft: 1:8 conical shaft
• Flange type: Centering Flange 25.4 mm group 10
• Max. pressure: 200 bar
• Max. peak pressure: 250 bar
• Min. speed: 600RPM
• Max. speed: 2100 RPM
• Dimension A: 101 mm
• Dimension B: 47 mm
