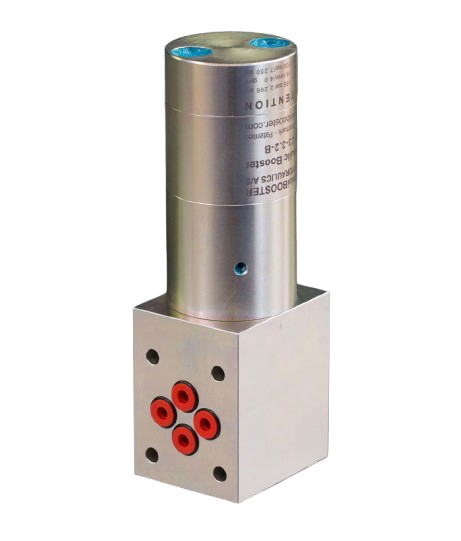

9.0 x NG6 Hydraulic Pressure Booster | max 500 bar

9.0 x Hydraulic pressure booster double-acting | max 500 bar
Compact double-acting hydraulic pressure booster suitable for use in applications where building and maintaining high pressure is required. This booster is and increases the delivered pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The outlet pressure adjustment is carried out by varying the supplied pressureërun.

Technical properties:

• Boosting ratio: 9.0
• Max. amplified Outlet flow: 0.9 l/min
• Max. inlet flow: 13 l/min
• Incoming pressure: 55 bar
• Max. output pressure: 500 bar
• With controlled check valve - Dump Valve DV
• Weight: 2.5kg
• Brand: Minibooster
