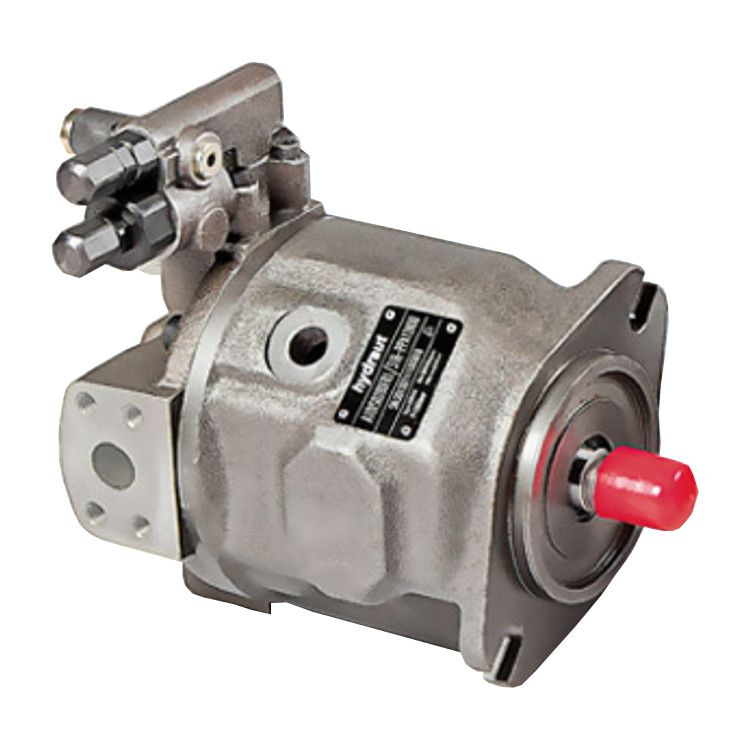

Axial piston pump A10VSO 140cc

Axial piston pump A10VSO 140cc

• High quality Italian Hydraut axial piston pump. An ideal pump in many open hydraulic circuits, hydraulic transmissions, industriesële systems or mobile applications. This pump replaces the Bosch Rexroth A10VO and A10VSO series 1 on 1 at a favorable price.

Technical specifications:

• Pump series: A10VSO 140
• Port: behind/side
• Circuit type: Open
• Nominal pressure: 280 bar
• Maximum pressure: 350 bar
• Contents: 140cc
• Max. speed: 1800 rpm
• Max. flow: 252 l/min
• Max. assets: 156hp
• Max. torque: 623 Nm
• Control line max: 3l/min / 4.5l/min (depending on the selected control)
• Empty weight: 60kg

To order the pump, make the following choices:

Choice 1: Choose your desired pump control

• DFR = Pressure control with flow control, hydraulic X - T open
• DFR1 = Pressure control with flow control, X - T closed
• DR = Pressure control
• DRG = Pressure control with pressure cut-off, remotely operated, hydraulic
• DFLR = Pressure, flow and power control

Choice 2: Transit

• Indicate whether the desired configuration should have a passthrough.

Option 3: Enter the correct order code.

• Appendix 1 shows an overview of all configurations of this type of pump. From here, compose your order code and enter it in the input field.

Other attachments:

• Appendix 2: Hydraulic pump dimensions (A10VSO 140)
• Appendix 3.1: Hydraut pumps brochure (page 1-14)
• Appendix 3.2: Hydraut pumps brochure (page 15-28)
