Axial piston pump A10VSO 45cc
€1,577.54
In stock

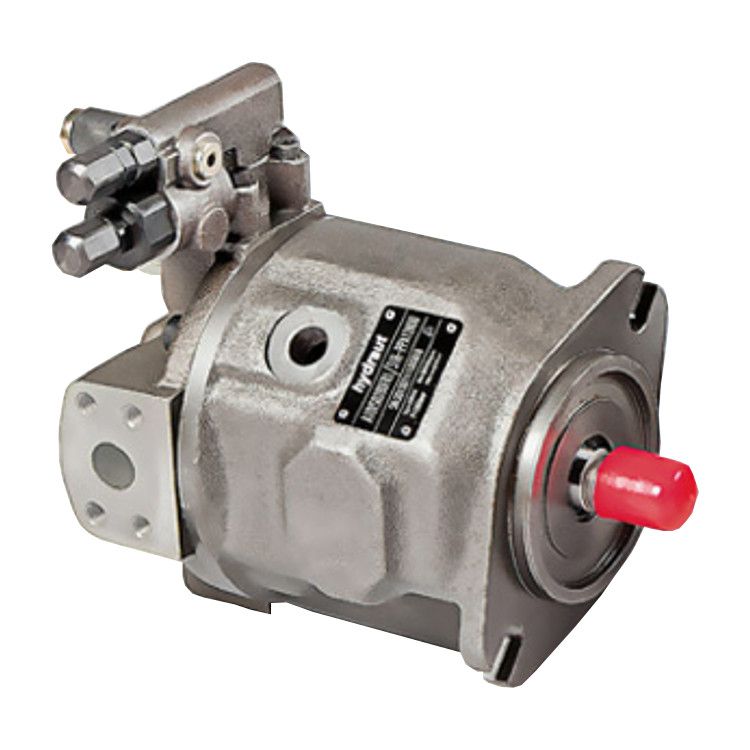

Axial piston pump A10VSO 45cc
- High quality Italian Hydraut axial piston pump. An ideal pump in many open hydraulic circuits, hydraulic transmissions, industriesële systems or mobile applications. This pump replaces the Bosch Rexroth A10VO and A10VSO series 1 on 1 at a favorable price.
Technical specifications:
- Pump series: A10VSO 45
- Port: behind/side
- Circuit type: Open
- Nominal pressure: 280 bar
- Maximum pressure: 350 bar
- Contents: 45cc
- Max. speed: 2600 rpm
- Max. flow: 117 l/min
- Max. assets: 72hp
- Max. torque: 200 Nm
- Control line max: 3l/min / 4.5l/min (depending on the selected control)
- Empty weight: 21 kg
To order the pump, make the following choices:
Choice 1: Choose your desired pump control
- DFR = Pressure control with flow control, hydraulic X - T open
- DFR1 = Pressure control with flow control, X - T closed
- DR = Pressure control
- DRG = Pressure control with pressure cut-off, remotely operated, hydraulic
- DFLR = Pressure, flow and power control
Choice 2: Transit
- Indicate whether the desired configuration should have a passthrough.
Option 3: Enter the correct order code.
- Appendix 1 shows an overview of all configurations of this type of pump. From here, compose your order code and enter it in the input field.
Other attachments:
- Appendix 2: Hydraulic pump dimensions (A10VSO 45)
- Appendix 3.1: Hydraut pumps brochure (page 1-14)
- Appendix 3.2: Hydraut pumps brochure (page 15-28)
