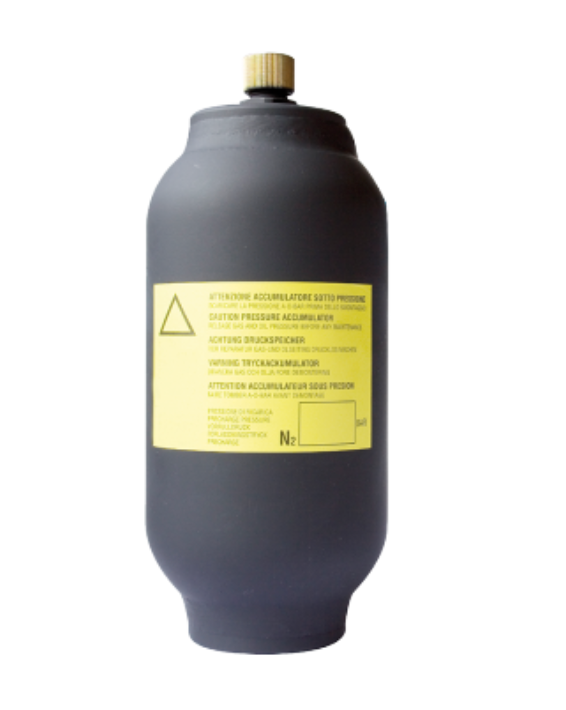

Bladder Accumulator 40 l/min - 0.15L - M18x1.5

Bladder Accumulator 40 l/min - 0.15L - M18x1.5

Technical Properties:

• Maximum nitrogen pressure: 150 bar
• Maximum working pressure (PS): 250-210 bar
• Test pressure (PT): PS x 1.43 / 1.3 / 1.5
• Body: made of painted carbon steel
• Standard nitrogen valve: 5/8" UNF (R version)
• Operating temperature range: -20 ℃ to +80 ℃
• Compatible fluids: mineral oils and non-corrosive fluids, non-replaceable
• Mounting: horizontal / vertical (nitrogen valve facing up)
• Construction method: kit version, seamless design
• Compression ratio: recommended: P2/P0 = 2.5 / maximum: P2/P0 = 4

Technical Specifications:

• R1: M18x1.5
• Maximum oil flow: 40 l/min
• Maximum pressure: 250 bar
• Nitrogen volume: 0.15 L
• Dimension C: 23 mm
• Dimension D: 70 mm
• Dimension H: 142 mm

This bladder accumulator complies with:

*Note: bladder is not replaceable.
