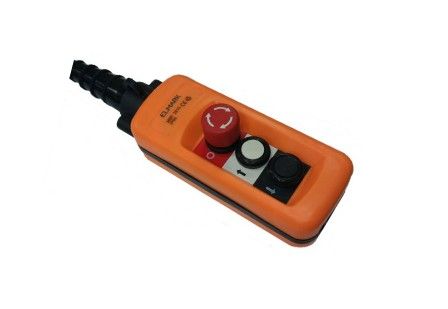

Button box for double-acting hydraulic power unit 2 buttons and emergency stop

Button box for double-acting hydraulic power unit 2 buttons and emergency stop

Additional option: wired or not

Technical specifications general:

• Supply voltage: 230V; 50/60Hz
• IP code: IP65
• Working temperature: -10 +65°C
• Number of buttons: 2 + 1x emergency stop button

Technical specifications with wiring:

• Connections:
  1. Cetop connections = + (switched voltage)
  2. Yellow/green = + (constant voltage)
  3. Black, fork connection = + (Motor relay, switches simultaneously with each button)
  4. Blue = -
• Cable length: 2 meters

*Delivered without Cetop screws
