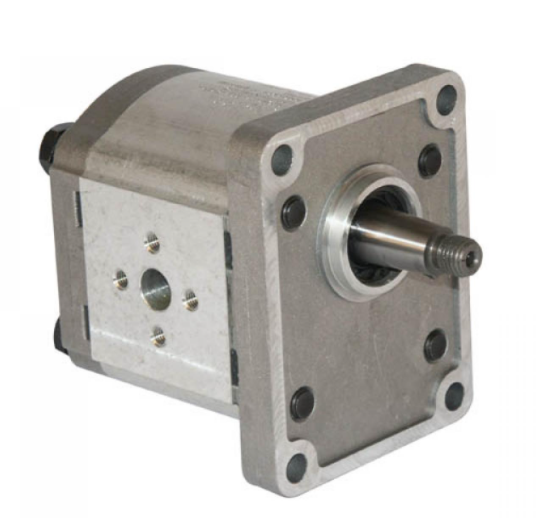

Casappa gear motor PLM20R 25cc 82E2
€355.59
In stock
Casappa gear motor PLM20R 25cc 82E2
Technical specifications:
- Brand: Casappa
- Application: high-speed mechanical drives
- Direction of rotation: both directions
- Unit: per piece
- Back cover Material: steel
Technical specifications:
- Item no: PLM2025R82E2
- Item no. Casappa: PLM20.25R0-82E2-LEA/EB-N
- Displacement: 26.42 cc/rev
- pressure: 280 bar
- Pressure at P1: 170 bar
- Press continuously: 170 bar
- Max. N speed: 2500 rpm
- Min. N speed: 500 rpm
- shaft type: 1:8 conical shaft
- Flange Type: E2 - Centering Flange 36.5 mm group 2
- Press flange: 1 G-08
- Suction flange: 2 G-08
- Core to core pressure side: 30mm
- Core to core suction side: 40mm
- Housing length: 125.5mm
- Length flange to center bore: 60mm
