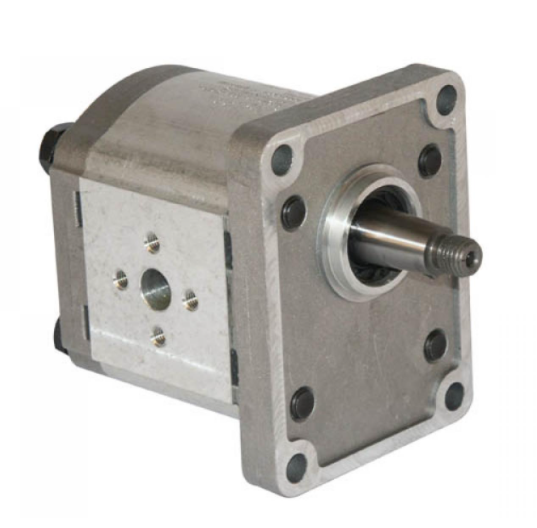

Casappa gear motor PLM20R 4cc 82E2

Casappa gear motor PLM20 4cc 82E2

Technical specifications:

• Brand: Casappa
• Application: high-speed mechanical drives
• Direction of rotation: both directions
• Unit: per piece
• Back cover Material: steel

Technical specifications:

• Item no.: PLM204R82E2
• Article no. Casappa.: PLM20.4R0-82E2-LEA/EA-N-EL
• Displacement: 4.95 cc/rev
• pressure: 280 bar
• Pressure at P1: 250 bar
• Press continuously: 200 bar
• Max. N speed: 4000 rpm
• Min. N speed: 600 rpm
• Shaft size: 1:8 conical shaft
• Flange Type: E2 - Centering Flange 36.5 mm group 2
• Press flange: 1 G-08
• Suction flange: 1 G-08
• Core to core pressure side: 30mm
• Core to core suction side: 30mm
• Housing length: 93mm
• Length flange to center bore: 43.75mm
