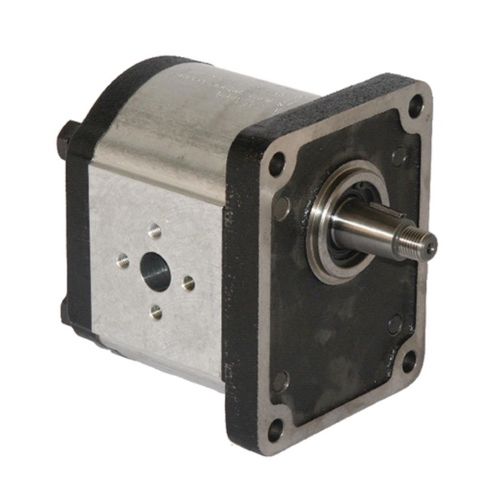

Casappa gear pump group 3 right 51cc

Casappa gear pump group 3 right 51cc

Technical specifications:

• Scope of application: mobile applications, industrialële applications
• Advantages: wide range of applications, suitable for tougher conditions
• Details: Various connection options, externally mounted
• Features: consisting of 3 parts, electro-hydraulic fan drive

Technical specifications:

• Type: PLP30D
• Pump group: 3
• Direction of rotation: right
• Pressure continuously: 210 bar
• Operating pressure: 230 bar
• Max. pressure: 240 bar
• Displacement Q: 51.83 cc/rev
• Min. speed: 350 rpm
• Max. speed: 3000 rpm
• Connection: 4-hole flange
• Flange Type: E3-EN, Centering Flange 50.8 mm
• Diameter E: 40mm
• Diameter D: 51mm
• Distance center hole to end: 72.5 mm
• Length: 149 mm
• Pump housing Material: aluminum
• Back cover Material: cast iron
• OEM number: PLP30.51D0-83E3-LED/EB-N-FS
• Unit: per piece
