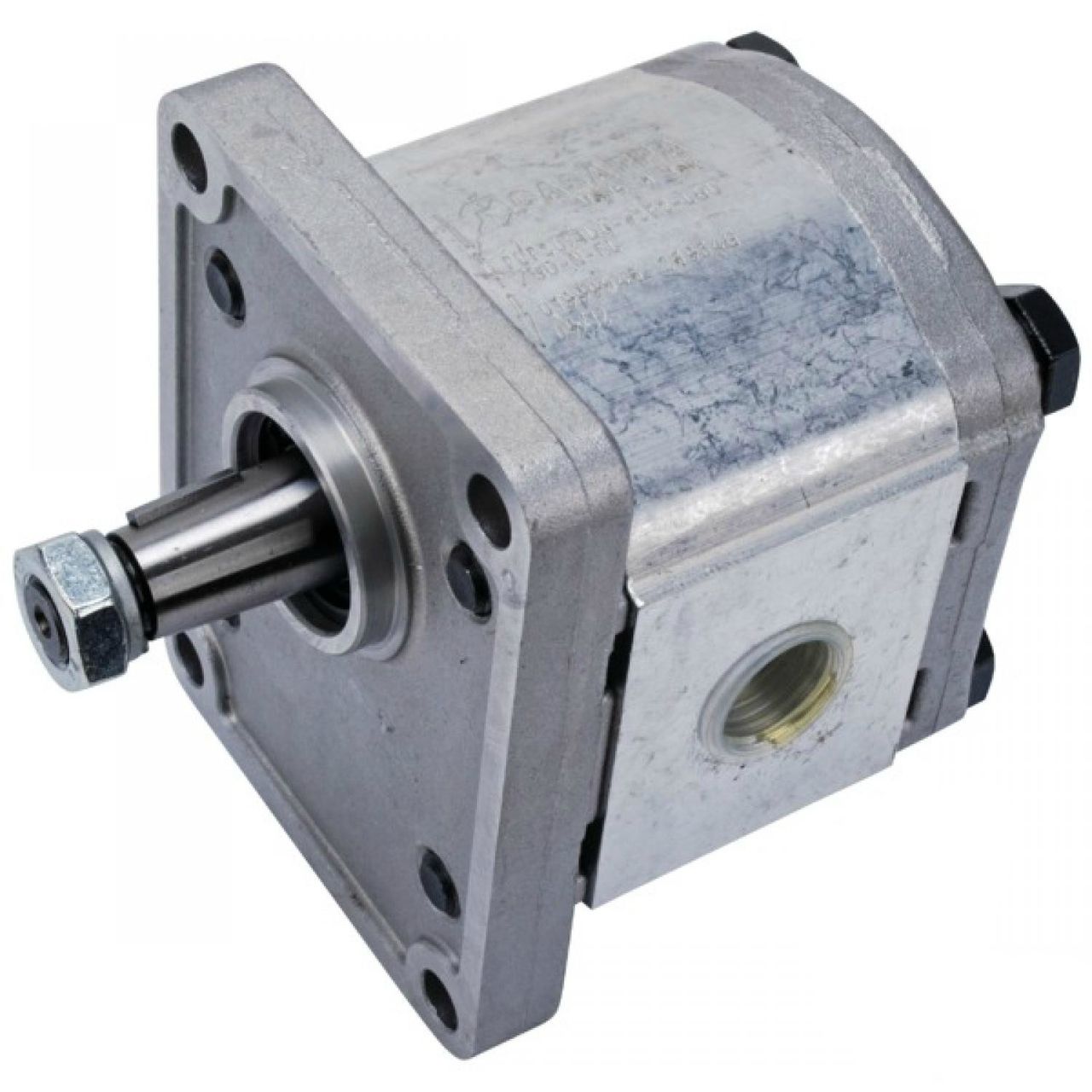

Casappa Gear pump PLP20D 11.2cc 82E2 right 1/2 BSP

Casappa Gear pump PLP20D 11.2cc 82E2 right 1/2 BSP

82-E2 group 2

Gear pump from the renowned Italian brand Casappa. Suitable for mobile and industrial applications. Widely applicable for tougher conditions.

Technical specifications:

• Connection: 4-hole flange, EN
• Flange Type: E2-EN, Centering Flange 36.5 mm, group 2
• Diameter E: 1/2" BSP
• Direction of rotation: right
• Distance, center hole to end: 48.5mm
• Length A: 102.5mm
• Material: pump housing: aluminum, flange and rear cover: aluminum
• OEM number: PLP20.11,2 D0-82E2-LGD/GD
• Press continuously: 250 bar
• Pressure-intermittent actuation: 280 bar
• Max. pressure: 300 bar
• Displacement Q (cc/rev): 11.23
• Speed ​​N max. (rpm): 3500
• Speed ​​N min. (rpm): 600
• Code: 82-E2
• shaft type: conical 1:8
