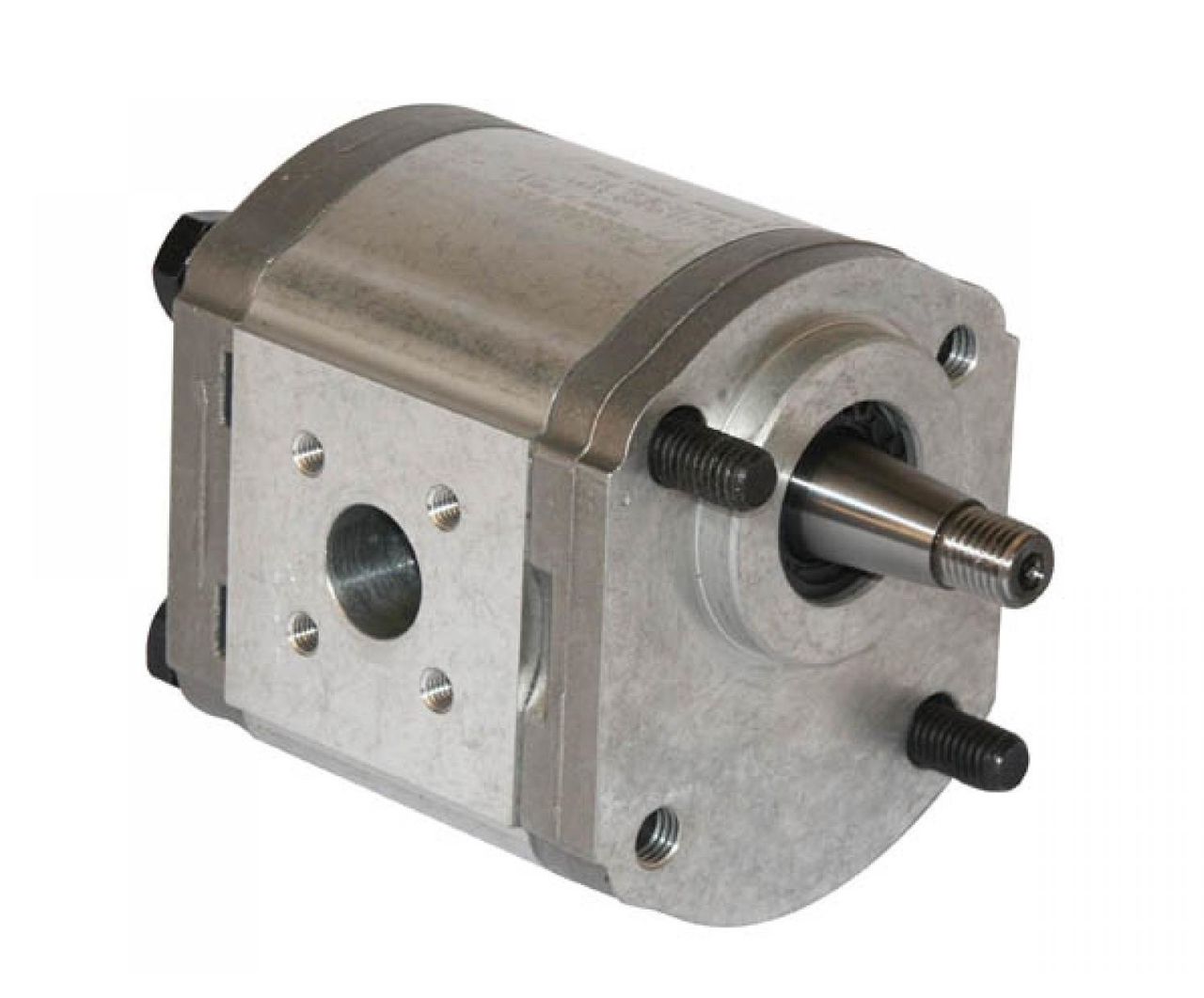

Casappa Gear pump PLP20S 20cc 54B5 left

Casappa Gear pump PLP20S 20cc 54B5 left

Polaris 54-B5 group 2

Gear pump from the renowned Italian brand Casappa. Suitable for mobile and industrial applications. Widely applicable for tougher conditions.

Technical specifications:

• Connection: 4-hole flange, DIN
• Flange Type: B5-DIN, Centering Flange 50 mm group 2
• Bolt hole diameter: 35mm
• Diameter D: 40mm
• Direction of rotation: left
• Distance, center hole to end: 54mm
• Length A: 115.5mm
• Material: pump housing: aluminum, flange and rear cover: aluminum
• OEM number: PLP20.20S0-54B5-LBE/BC-N-EL FS
• Press continuously: 200 bar
• Pressure-intermittent actuation: 220 bar
• Max. pressure: 240 bar
• Displacement Q (cc/rev): 21.14
• Speed ​​N max. (rpm): 3000
• Speed ​​N min. (rpm): 500
• Code: 54-B5
• shaft type: conical 1:5
