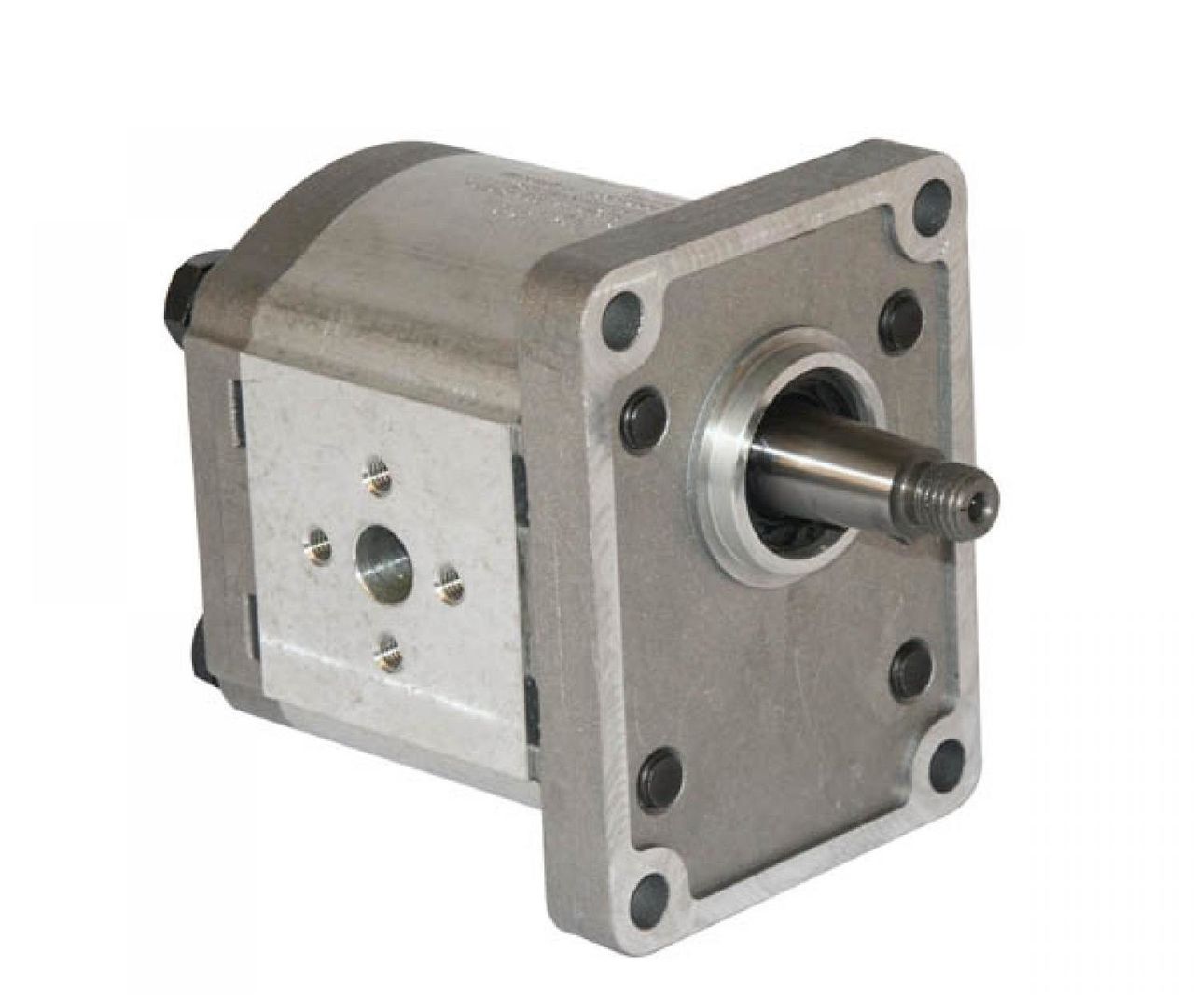

Casappa Gear pump PLP20S 4cc 82E2 left
€274.48
In stock
Casappa Gear pump PLP20S 4cc 82E2 left
82-E2 group 2
Gear pump from the renowned Italian brand Casappa. Suitable for mobile and industrial applications. Widely applicable for tougher conditions.
Technical specifications:
- Connection: 4-hole flange, EN
- Flange Type: E2-EN, Centering Flange 36.5 mm, group 2
- Diameter E: 30mm
- Diameter D: 30mm
- Direction of rotation: left
- Distance, center hole to end: 43.75mm
- Length A: 93mm
- Material: pump housing: aluminum, flange and rear cover: aluminum
- OEM number: PLP20.4S0-82E2-LEA/EA-N-EL FS
- Press continuously: 250mm
- Pressure-intermittent actuation: 280 bar
- Max pressure: 300 bar
- Displacement Q (cc/rev): 4.95
- Speed N max. (rpm): 4000
- Speed N min. (rpm): 600
- Code: 82-E2
- shaft type: conical 1:8
