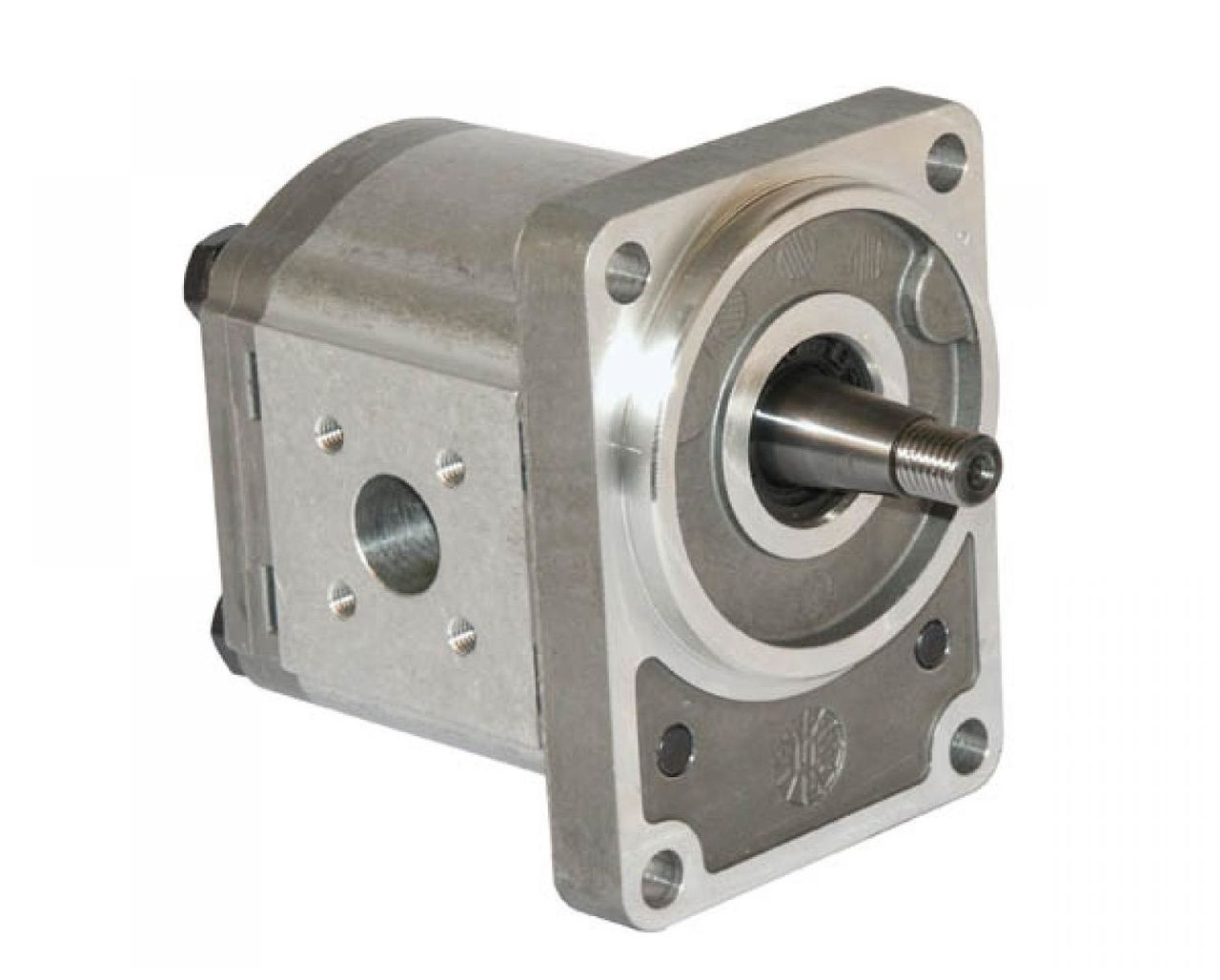

Casappa Gear pump PLP20S 6cc 54B2 left

Casappa Gear pump PLP20S 6cc 54B2 left

54-B2 group 2

Gear pump from the renowned Italian brand Casappa. Suitable for mobile and industrial applications. Widely applicable for tougher conditions.

Technical specifications:

• Connection: 4-hole flange, DIN
• Flange Type: B2-DIN, Centering Flange 80 mm group 2
• Bolt hole diameter: 35mm
• Diameter D: 40mm
• Direction of rotation: left
• Distance, center hole to end: 45.8mm
• Length A: 96.3mm
• Material: pump housing: aluminum, flange and rear cover: aluminum
• OEM number: PLP20.6,3S0-54B2-LBE/BC-N
• Press continuously: 250 bar
• Pressure-intermittent actuation: 280 bar
• Max. pressure: 300 bar
• Displacement Q (cc/rev): 6.61
• Speed ​​N max. (rpm): 4000
• Speed ​​N min. (rpm): 600
• Code: 54-B2
• shaft type: conical 1:5
