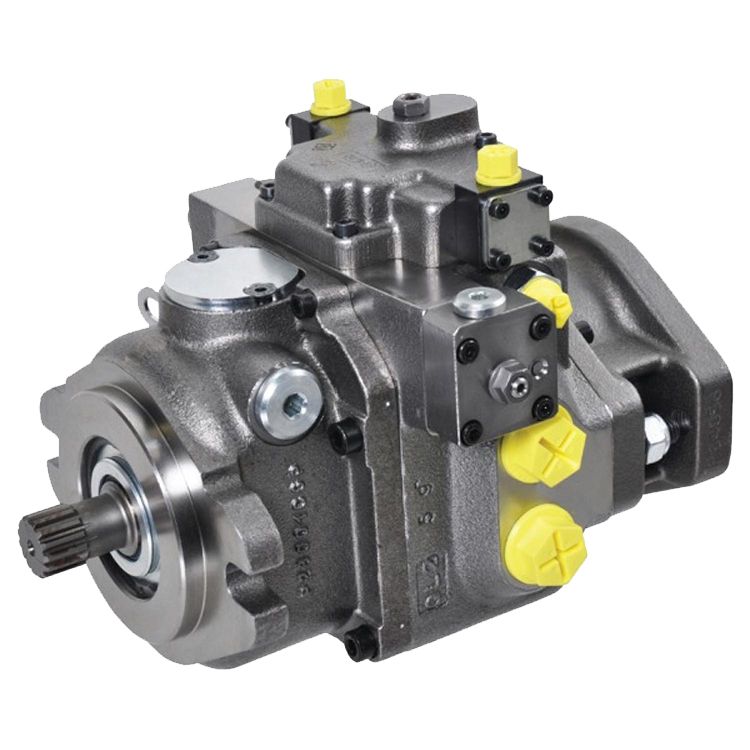

Closed Plunger Pump - Hydraulic proportional adjustment without feedback 21L/min

• This closed pump has a driving drive and a large volume with a medium pressure. In addition, the number of maximum stops can be adjusted with this closed pump.

Technical specifications:

• Flow rate (filling pump): 11 l/min
• Displacement: 21 l/min
• High pressure connection (filling pump):b 20 bar
• Linking: SAE B = Z13-16/32 DP with filling pump
• Max. operating pressure: 250 bar
• Speed ​​power min.: 700 rpm
• Speed ​​power max.:b 3600 rpm
• Unit: per piece
• pressure: 250 bar continuous, 350 bar peak pressure
• shaft type: spline shaft T15-16/32-DP
• Regulation: hydraulically proportional without feedback
