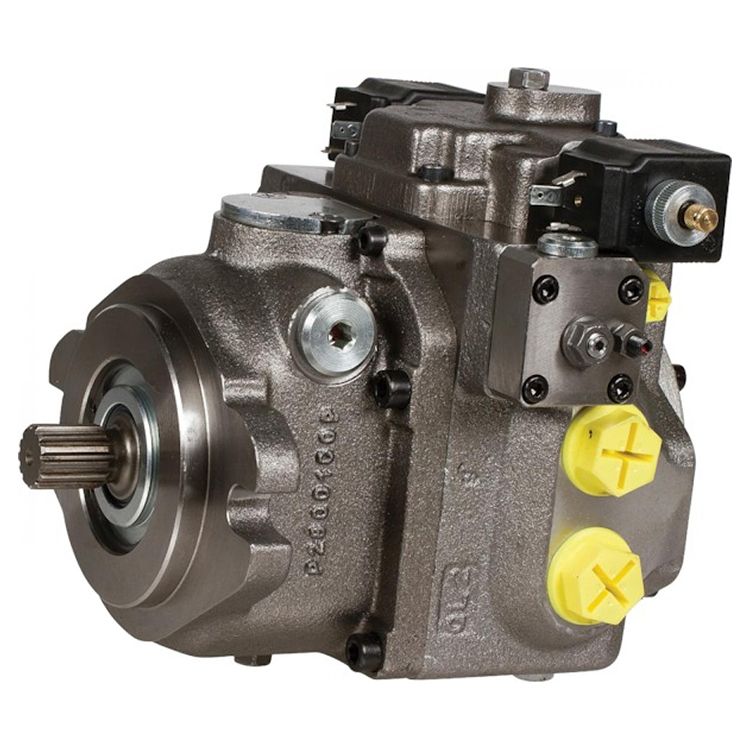

Closed Plunger Pump - Hydraulic proportional adjustment without feedback 46L/min

Closed Plunger Pump - Hydraulic proportional adjustment without feedback (INP)

• This closed pump has a driving drive and a large volume with a medium pressure. In addition, the number of maximum stops can be adjusted with this closed pump.

Technical specifications:

• Flow rate (filling pump): 13 l/min
• Displacement: 46 l/min
• High pressure connection (filling pump): 22 bar
• Linking: SAE B = Z13-16/32 DP with filling pump
• Max. operating pressure: 350 bar
• Speed ​​power min.: 700 rpm
• Speed ​​power max.: 3600 rpm
• Unit: per piece
• pressure: 300 bar continuous, 400 bar peak pressure
• shaft type: spline shaft T15-16/32-DP
• Regulation: hydraulically proportional without feedback
