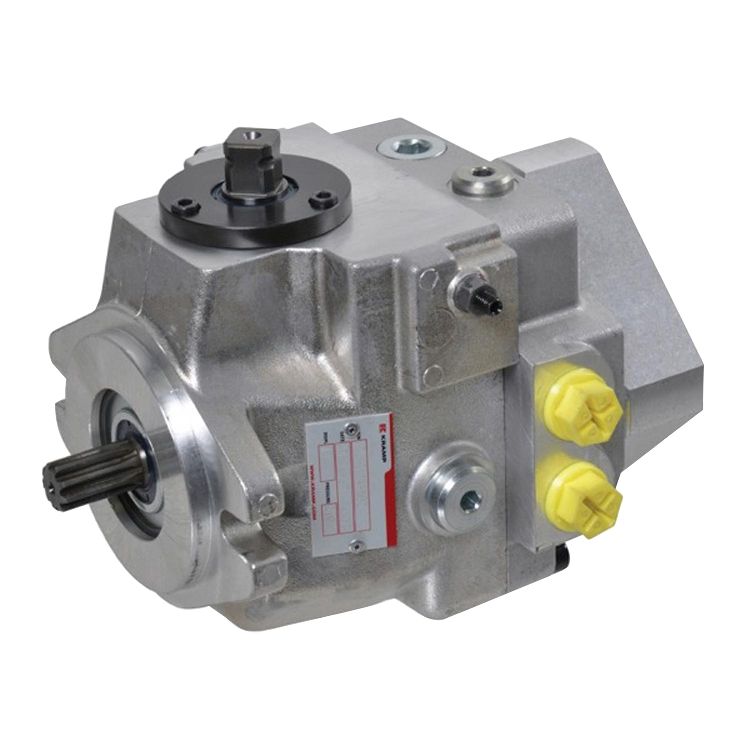

Closed Plunger Pump - Manual actuation with automatic zero setting - 14L/min

Closed plunger pump - Manual control with automatic zero setting (LNX)

• The manual actuation with automatic zero adjustment has a travel drive and a large volume with a medium pressure. In addition, the number of maximum stops can be adjusted with this closed pump.

Technical specifications:

• Flow rate (filling pump): 5.4 l/min
• Displacement: 14 l/min
• High pressure connection (filling pump): 20 bar
• Linking: without coupling with filling pump
• Max. operating pressure: 210 bar
• Speed ​​power min.: 700 rpm
• Speed ​​power max.: 3600 rpm
• Unit: per piece
• pressure: 210 bar continuous, 270 bar peak pressure
• shaft type: spline shaft T9-16/32-DP SAE A
• Regulation: manual actuation with automatic zero setting
