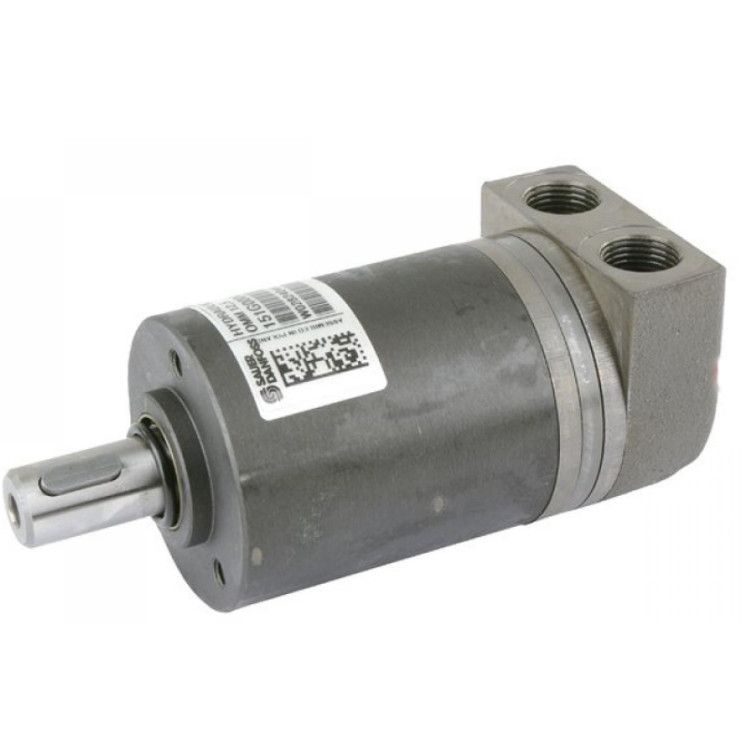

Danfoss OMM 13 cc hydraulic motor 16 mm shaft with side connection

Danfoss OMM 13 cc hydraulic motor 16 mm shaft with side connection

• Application: Fan and Brush Drives, Conveyors on Harvesters
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical specifications:

• Unit: per piece
• Type: OMM
• Original number: 151G0004
• Connection: side connection
• Connection C: 1/8" BSP
• Connection D: 3/8" BSP
• Shaft diameter: 16mm
• Axle type: straight
• max. capacity: 20 l/min
• Nominal pressure: 100 bar
• max. working pressure: 140 bar
• Peak pressure: 200 bar
• Rated torque: 16 Nm
• Dimension L1: 5.5mm
• Housing length: 114.5mm
• Flange type (optional): 2 hole flange type OMM-9 015-FL
• Engine flange: 3 hole
• Thread E: M6
• Stroke volume: 12.9 cc
• max. speed: 1550RPM
• minimum speed: 40RPM
• Power: 2.4kW
