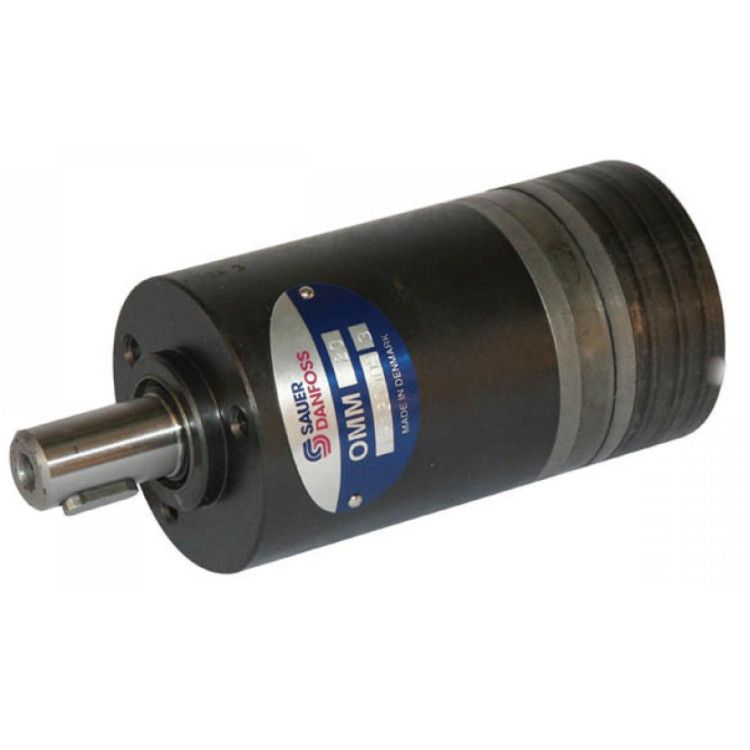

Danfoss OMM 13 cc hydraulic engine 16 mm shaft
€294.25
In stock
Danfoss OMM 13 cc hydraulic engine 16 mm shaft
- Application: Fan and Brush Drives, Conveyors on Harvesters
- Speed: low
- Torque: high
- Leakage connection: included. This allows motors to be connected in series.
- Combinations: various flange and shaft combinations possible
Technical specifications:
- Unit: per piece
- Type: OMM
- Original number: 151G0001
- Connection: rear connection
- Connection C: 1/8" BSP
- Connection D: 3/8" BSP
- Shaft diameter: 16mm
- Axle type: straight
- max. capacity: 20 l/min
- Nominal pressure: 100 bar
- max. working pressure: 140 bar
- Peak pressure: 200 bar
- Rated torque: 16 Nm
- Dimension L1: 5.5mm
- Housing length: 109.5mm
- Flange type (optional): 2 hole flange type OMM-9 015-FL
- Engine flange: 3 hole
- Thread E: M6
- Stroke volume: 12.9 cc
- max. speed: 1550RPM
- minimum speed: 40RPM
- Power: 2.4kW
