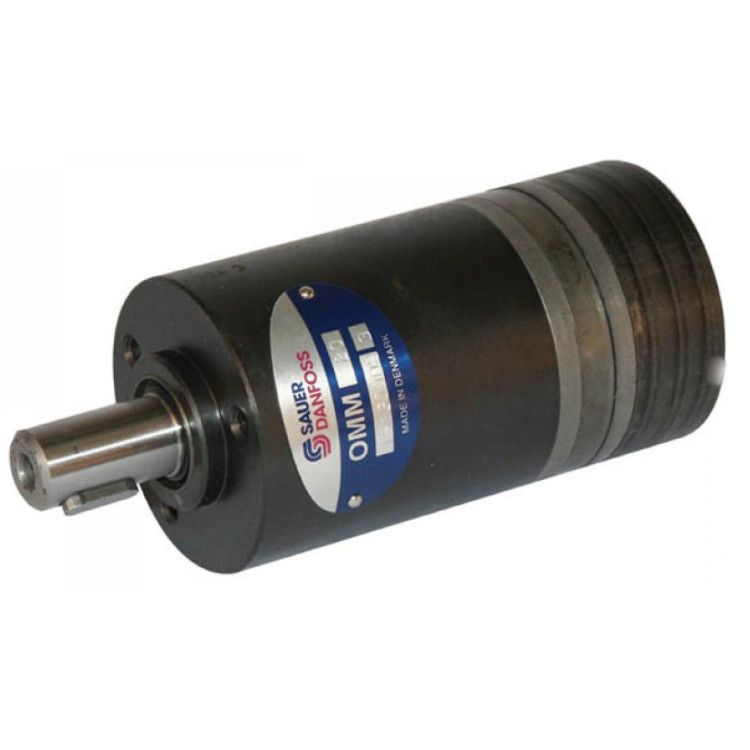

Danfoss OMM 20cc hydraulic motor 16mm shaft

€299.06
In stock

Danfoss OMM 20 cc hydraulic motor 16 mm shaft

  • Application: Fan and Brush Drives, Conveyors on Harvesters
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical specifications:

  • Unit: per piece
  • Type: OMM
  • Original number: 151G0002
  • Connection: rear connection
  • Connection C: 1/8" BSP
  • Connection D: 3/8" BSP
  • Shaft diameter: 16mm
  • Axle type: straight
  • max. capacity: 20 l/min
  • Nominal pressure: 100 bar
  • max. working pressure: 140 bar
  • Peak pressure: 200 bar
  • Rated torque: 25 Nm
  • Dimension L1: 8.5mm
  • Housing length: 112.5mm
  • Flange type (optional): 2 hole flange type OMM-9 015-FL
  • Engine flange: 3 hole
  • Thread E: M6
  • Stroke volume: 19.9 cc
  • Key: 5mm
  • max. speed: 1000RPM
  • minimum speed: 30RPM
  • Power: 2.4kW
