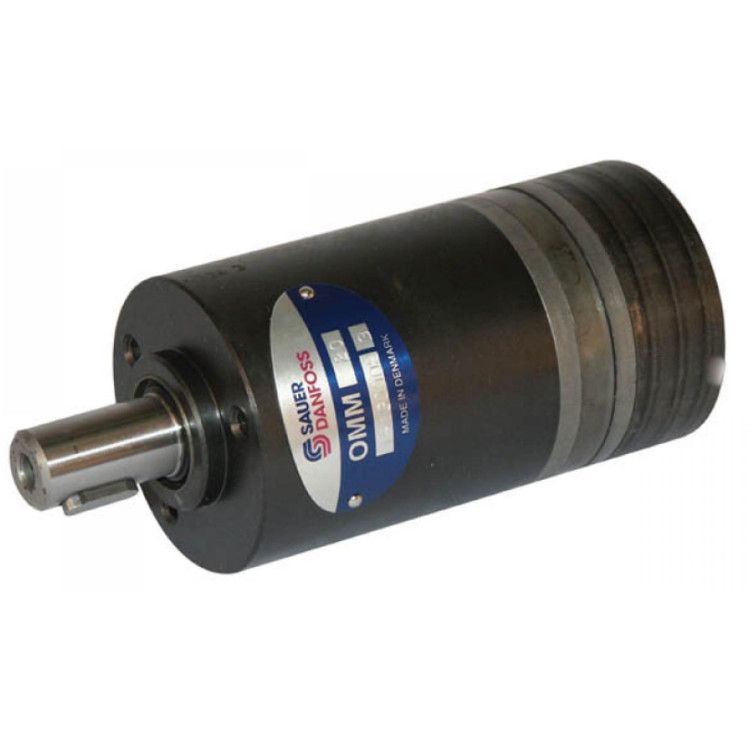

Danfoss OMM 32 cc hydraulic engine 16 mm shaft
€281.65
In stock
Danfoss OMM 32 cc hydraulic engine 16 mm shaft
- Application: Fan and Brush Drives, Conveyors on Harvesters
- Speed: low
- Torque: high
- Leakage connection: included. This allows motors to be connected in series.
- Combinations: various flange and shaft combinations possible
Technical specifications:
- Unit: per piece
- Type: OMM
- Original number: 151G0003
- Connection: rear connection
- Connection C: 1/8" BSP
- Connection D: 3/8" BSP
- Shaft diameter: 16mm
- Axle type: straight
- max. capacity: 20 l/min
- Nominal pressure: 100 bar
- max. working pressure: 140 bar
- Peak pressure: 160 bar
- Rated torque: 40 Nm
- Dimension L1: 13.5mm
- Housing length: 117.5mm
- Flange type (optional): 2 hole flange type OMM-9 015-FL
- Engine flange: 3 hole
- Thread E: M6
- Stroke volume: 31.6 cc
- Key: 5mm
- max. speed: 630RPM
- minimum speed: 30RPM
- Power: 2.4kW
