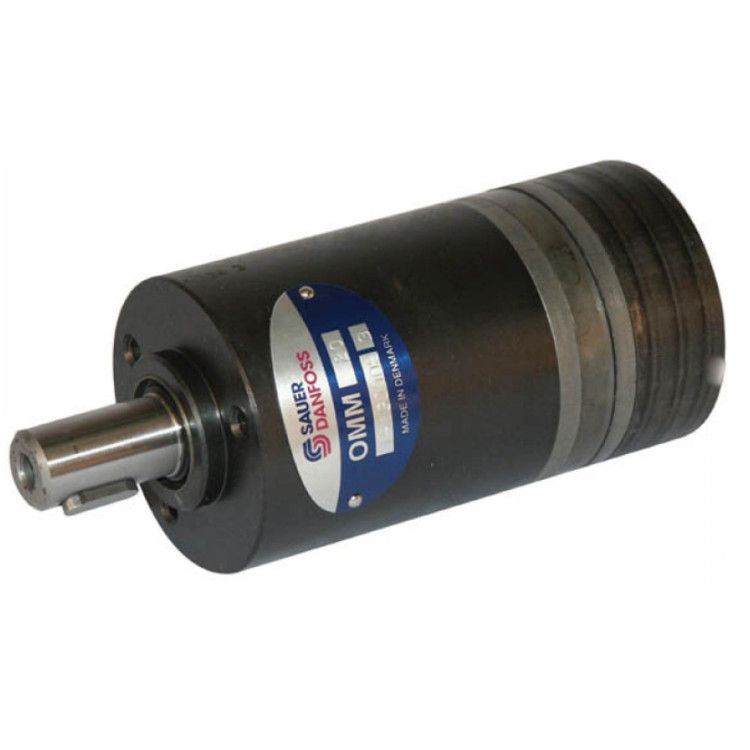

Danfoss OMM 40cc hydraulic motor 16mm shaft

€253.42
In stock

Danfoss OMM 40 cc hydraulic motor 16 mm shaft

  • Application: Fan and Brush Drives, Conveyors on Harvesters
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical specification:

  • Unit: per piece
  • Type: OMM
  • Original number: 151G0277
  • Connection: rear connection
  • Connection C: 1/8" BSP
  • Connection D: 3/8" BSP
  • Shaft diameter: 16mm
  • Axle type: straight
  • max. capacity: 20 l/min
  • Nominal pressure: 90 bar
  • max. working pressure: 140 bar
  • Peak pressure: 160 bar
  • Rated torque: 45 Nm
  • Dimension L1: 17mm
  • Housing length: 118mm
  • Flange type (optional): 2 hole flange type OMM-9 015-FL
  • Engine flange: 3 hole
  • Thread E: M6
  • Stroke volume: 40 cc
  • Key: 5mm
  • max. speed: 500RPM
  • minimum speed: 30RPM
  • Power: 2.2kW
