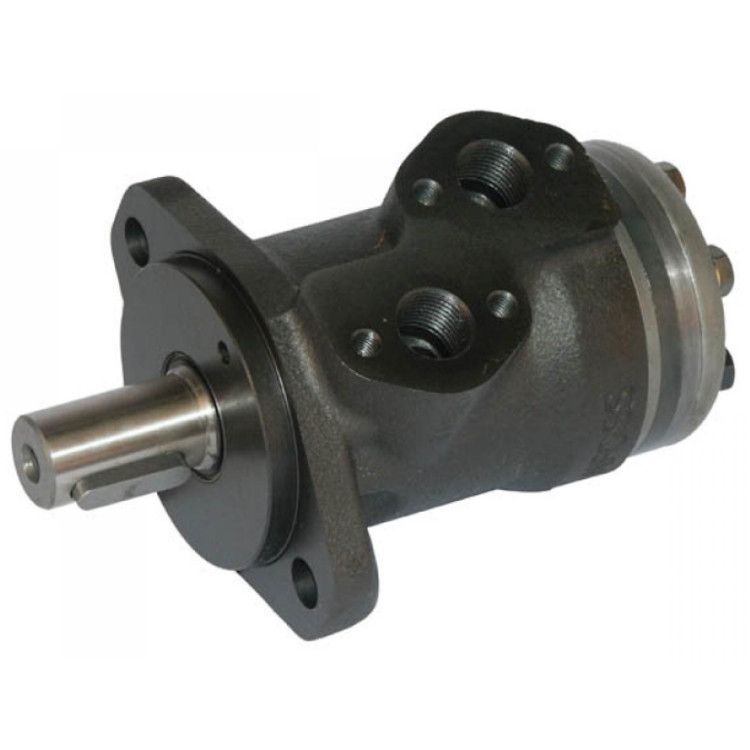

Danfoss OMP 25 cc hydraulic motor 25 mm shaft

€301.76
In stock

Danfoss OMP 25 cc hydraulic motor 25 mm shaft

  • Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
  • Speed: low
  • Torque: high
  • Leakage connection: exclusive. This prevents motors from being connected in series.
  • Combinations: various flange and shaft combinations possible

Technical specification:

  • Unit: per piece
  • Type: OMP
  • Original number: 1510340
  • Connection D: 1/2" BSP
  • Shaft diameter: 25mm
  • Axle type: straight
  • max. capacity: 40 l/min
  • Nominal pressure: 100 bar
  • max. working pressure: 140 bar
  • Peak pressure: 225 bar
  • Rated torque: 33 Nm
  • Dimension L1: 4.1mm
  • Housing length: 129mm
  • Engine flange : SAE flange 2 hole
  • Thread E: M8
  • Stroke volume: 25 cc
  • max. speed: 1600RPM
  • minimum speed: 20RPM
  • Power: 4.5kW
