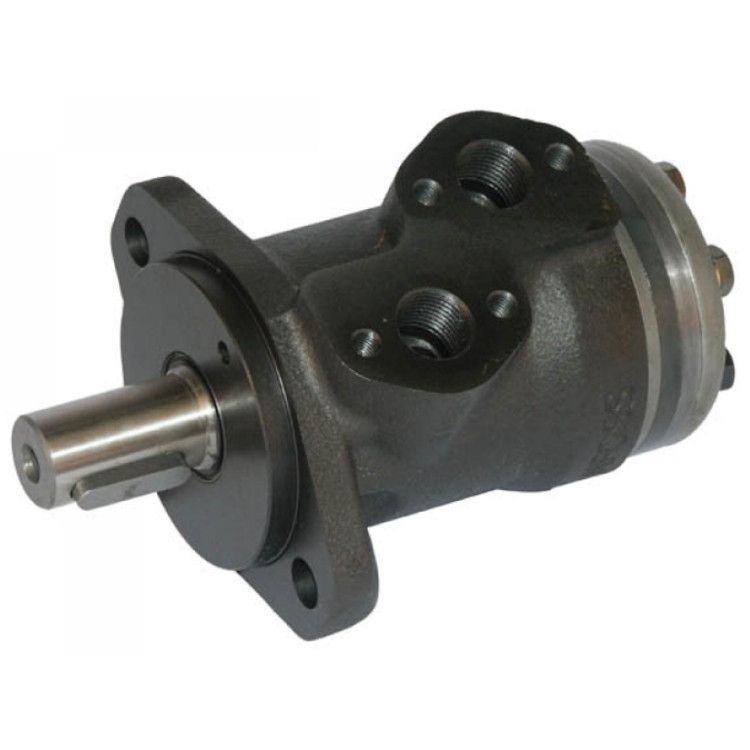

Danfoss OMP 315 cc hydraulic motor 25 mm shaft

€352.82
In stock

Danfoss OMP 315 cc hydraulic motor 25 mm shaft

  • Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical specification:

  • Unit: per piece
  • Type: OMP
  • Original number: 1510617
  • Connection C: 1/4" BSP
  • Connection D: 1/2" BSP
  • Shaft diameter: 25mm
  • Axle type: straight
  • max. capacity: 60 l/min
  • Nominal pressure: 75 bar
  • max. working pressure: 100 bar
  • Peak pressure: 160 bar
  • Rated torque: 300 Nm
  • Dimension L1: 40.9mm
  • Housing length: 165.5mm
  • Flange type: SAE A flange 2 and 4 hole
  • Engine flange : SAE flange 2 hole
  • Thread E: M8
  • Stroke volume : 306.1 cc
  • max. speed: 195RPM
  • minimum speed: 5RPM
  • Power: 5kW
