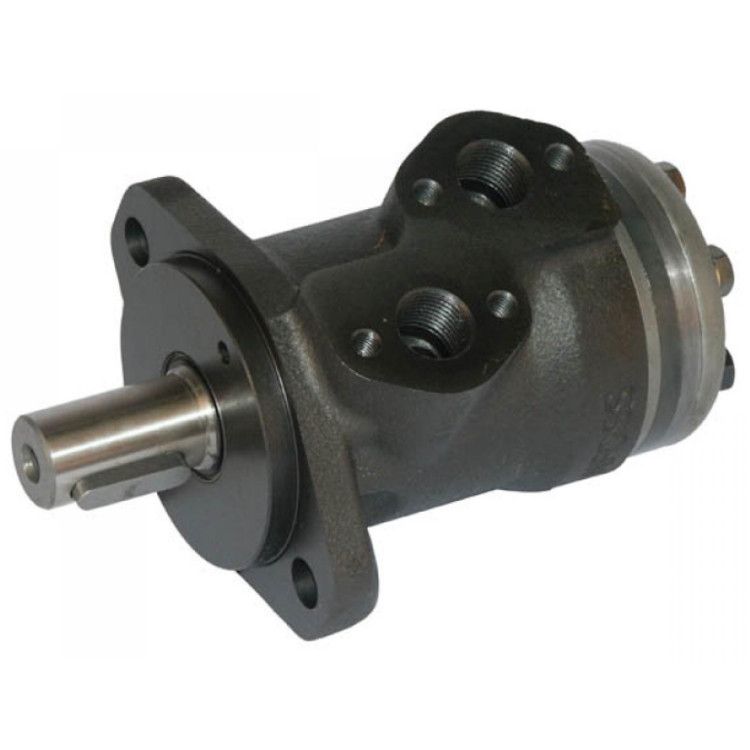

Danfoss OMP 40 cc hydraulic motor 25 mm shaft

Danfoss OMP 40 cc hydraulic motor 25 mm shaft

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical specification:

• Unit: per piece
• Type: OMP
• Original number: 1510642
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 25mm
• Axle type: straight
• max. capacity: 60 l/min
• Nominal pressure: 100 bar
• max. working pressure: 140 bar
• Peak pressure: 225 bar
• Rated torque: 52 Nm
• Dimension L1: 6.5mm
• Housing length: 131mm
• Flange type: SAE A flange 2 and 4 hole
• Engine flange : SAE flange 2 hole
• Thread E: M8
• Stroke volume: 40 cc
• max. speed: 1500RPM
• minimum speed: 10RPM
• Power: 7kW
