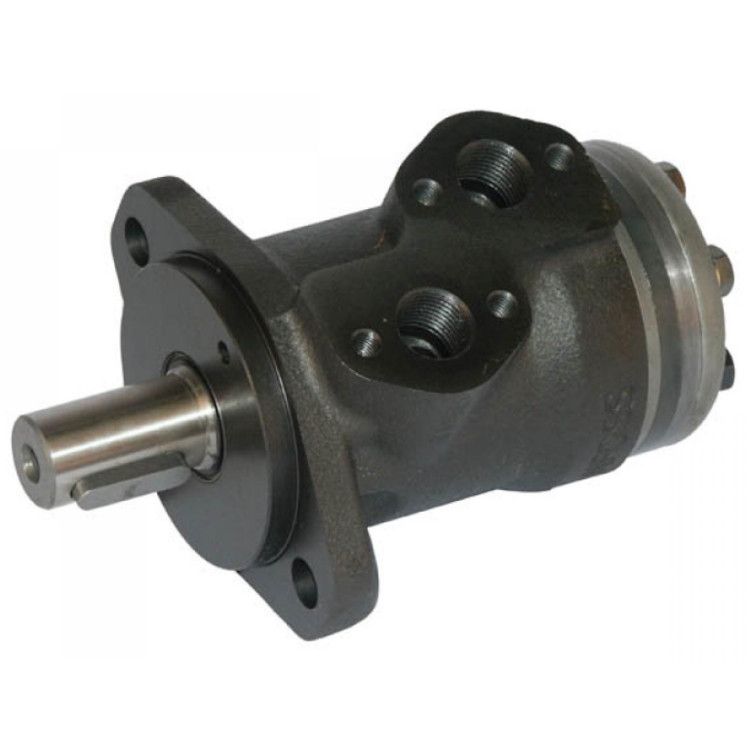

Danfoss OMP 400 cc hydraulic motor 25 mm shaft

Danfoss OMP 400 cc hydraulic motor 25 mm shaft

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical specifications:

• Unit: per piece
• Type: OMP
• Original number: 1510618
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 25mm
• Axle type: straight
• max. capacity: 60 l/min
• Nominal pressure: 60 bar
• max. working pressure: 80 bar
• Peak pressure: 130 bar
• Rated torque: 300 Nm
• Dimension L1: 52mm
• Housing length: 176.6mm
• Flange type: SAE A flange 2 and 4 hole
• Engine flange : SAE flange 2 hole
• Thread E: M8
• Stroke volume : 389.2 cc
• max. speed: 155RPM
• minimum speed: 5RPM
• Power: 4kW
