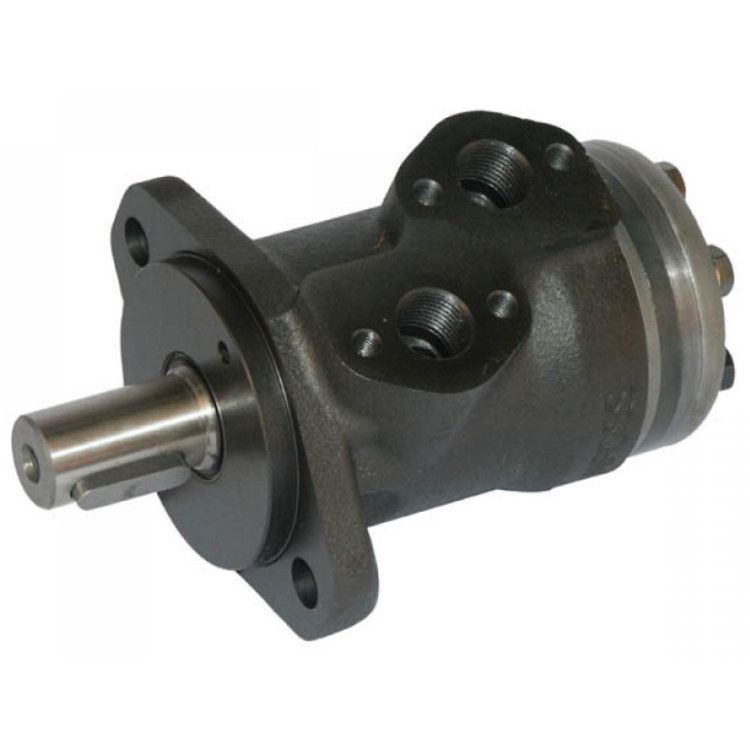

Danfoss OMP 50 cc hydraulic motor 25 mm shaft
€314.76
In stock
Danfoss OMP 50 cc hydraulic motor 25 mm shaft
- Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
- Speed: low
- Torque: high
- Leakage connection: included. This allows motors to be connected in series.
- Combinations: various flange and shaft combinations possible
Technical specifications:
- Unit: per piece
- Type: OMP
- Original number: 1510610
- Connection C: 1/4" BSP
- Connection D: 1/2" BSP
- Shaft diameter: 25mm
- Axle type: straight
- max. capacity: 60 l/min
- Nominal pressure: 140 bar
- max. operating pressure: 175 bar
- Peak pressure: 225 bar
- Rated torque: 93 Nm
- Dimension L1: 6.5mm
- Housing length: 131mm
- Flange type: SAE A flange 2 and 4 hole
- Engine flange : SAE flange 2 hole
- Thread E: M8
- Stroke volume: 48.6 cc
- max. speed: 1230RPM
- minimum speed: 10RPM
- Power: 10kW
