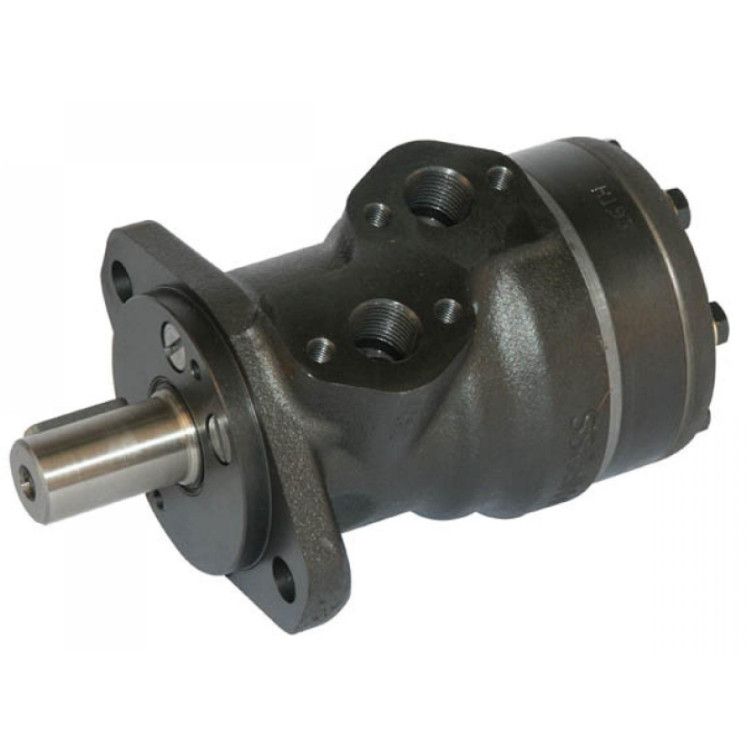

Danfoss OMR 100 cc hydraulic motor 25 mm shaft

Danfoss OMR 100 cc hydraulic motor 25 mm shaft

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical features:

• Unit: per piece
• Type: OMR
• Original number: 1510712
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 25mm
• Axle type: straight
• max. capacity: 60 l/min
• Nominal pressure: 175 bar
• max. working pressure: 200 bar
• Peak pressure: 225 bar
• Dimension L1: 17.5mm
• Housing length: 144.1mm
• Flange type: SAE A flange 2 and 4 hole
• Engine flange : SAE flange 2 hole
• Thread E: M8
• Stroke volume: 99.9 cc
• max. speed: 600RPM
• minimum speed: 10RPM
• Power: 13.1kW
