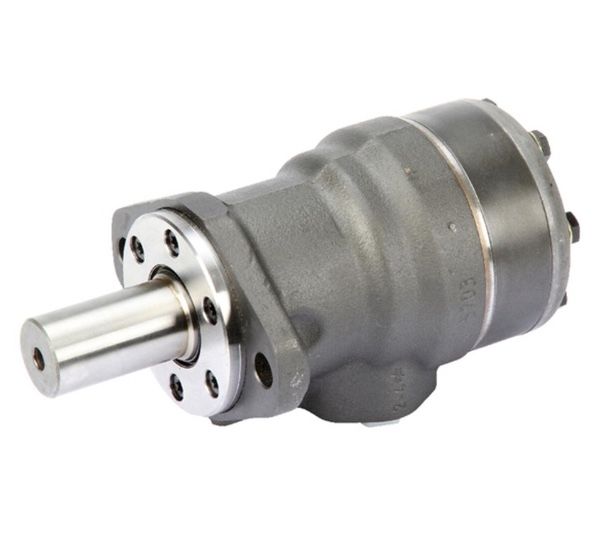

Danfoss OMR 125 cc hydraulic motor 32 mm shaft

Danfoss OMR 125 cc hydraulic motor 32 mm shaft

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical features:

• Unit: per piece
• Type: OMR
• Original number: 1510208
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 32mm
• Axle type: straight
• max. capacity: 60 l/min
• Nominal pressure: 175 bar
• max. working pressure: 200 bar
• Peak pressure: 225 bar
• Dimension L1: 21.8mm
• Housing length: 154.4mm
• Flange type: SAE A flange 2 and 4 holes
• Motor flange : SAE flange 2 holes
• Thread E: M8
• Stroke volume: 125.7 cc
• max. speed: 475RPM
• minimum speed: 9RPM
• Power: 12.5kW
