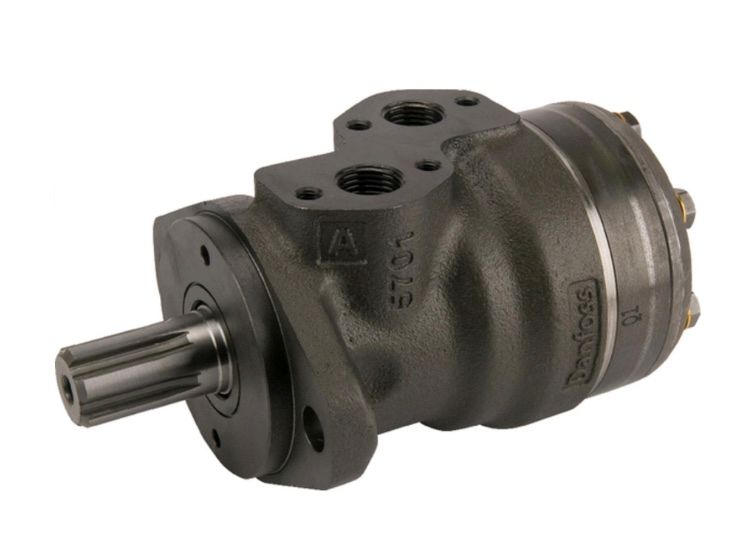

Danfoss OMR 125 cc hydraulic motor with spline shaft 25.4 mm

Danfoss OMR 125 cc hydraulic motor with spline shaft 25.4 mm

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical features:

• Type: OMR
• Connection: side port staggered
• Axle Diameter: 1"
• Shaft type: with keys
• max. capacity: 60 l/min
• Nominal pressure: 200 bar
• max. working pressure: 225 bar
• Housing length: 146.2mm
• Torque max.: 330 Nm
• Motor Flange: Side Port Offset with 2 Hole (A2 Flange)
• Bolt hole diameter: 82.5mm
• Stroke volume: 125 cc
• max speed: 475RPM
• Power: 14kW
• Unit: per piece
