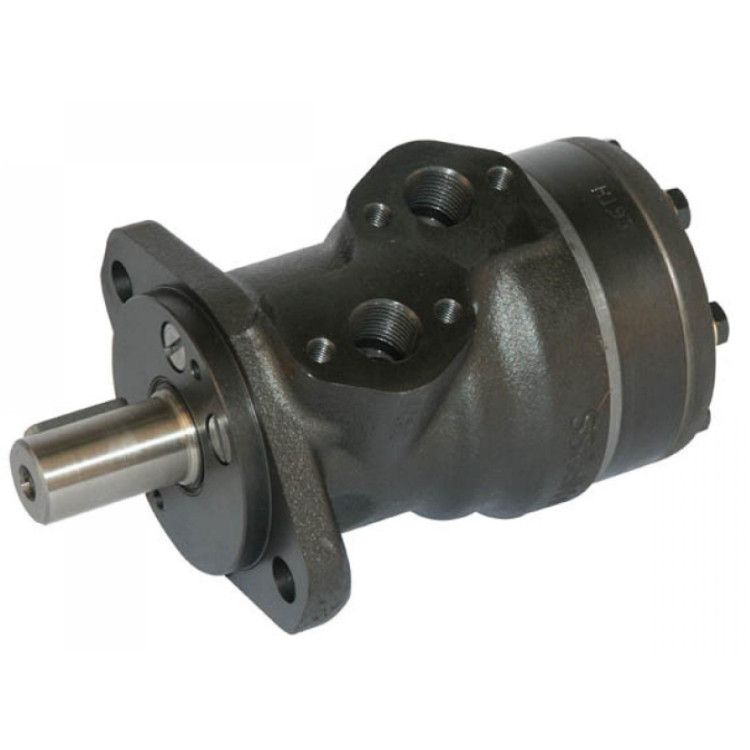

Danfoss OMR 315 cc hydraulic motor 25 mm shaft

€647.50
In stock

Danfoss OMR 315 cc hydraulic motor 25 mm shaft

  • Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical features:

  • Unit: per piece
  • Type: OMR
  • Original number: 1510717
  • Connection C: 1/4" BSP
  • Connection D: 1/2" BSP
  • Shaft diameter: 25mm
  • Axle type: straight
  • max. capacity: 60 l/min
  • Nominal pressure: 70 bar
  • max. working pressure: 100 bar
  • Peak pressure: 150 bar
  • Dimension L1: 54.8mm
  • Housing length: 181.5mm
  • Flange type: SAE A flange 2 and 4 hole
  • Engine flange : SAE flange 2 hole
  • Thread E: M8
  • Stroke volume : 315.7 cc
  • max. speed: 190RPM
  • minimum speed: 5RPM
  • Power: 5kW
