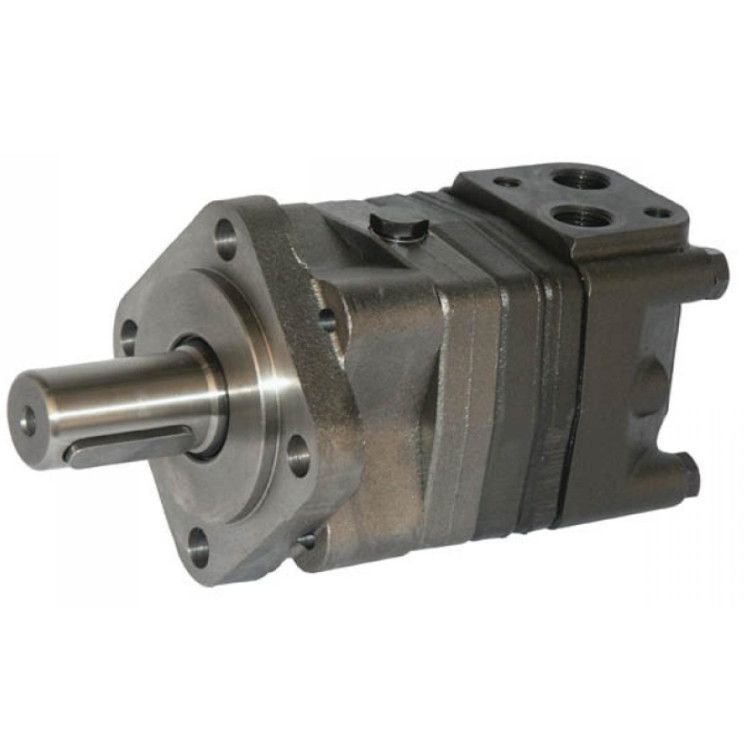

Danfoss OMS 125 cc hydraulic motor 32 mm shaft

€733.95
In stock

Danfoss OMS 125 cc hydraulic motor 32 mm shaft

  • Application: Agricultural, forestry and construction machinery, drilling tools, heavy lifting equipment and winches, and ship and yard equipment
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical features:

  • Unit: per piece
  • Type: OMS
  • Original number: 151F0502
  • Connection C: 1/4" BSP
  • Connection D: 1/2" BSP
  • Shaft diameter: 32mm
  • Axle type: straight
  • max. capacity: 75 l/min
  • Nominal pressure: 210 bar
  • max. working pressure: 275 bar
  • Peak pressure: 295 bar
  • Rated torque: 370 Nm
  • Dimension L1: 131.9mm
  • Dimension L2: 153.9mm
  • Dimension L3: 176.2mm
  • Flange type (optional): 4 hole flange, fitting edge 82.55 mm
  • Engine Flange: 4 Hole Standard Flange
  • Stroke volume: 125.7 cc
  • max. speed: 600RPM
  • minimum speed: 8RPM
  • Power: 18kW
