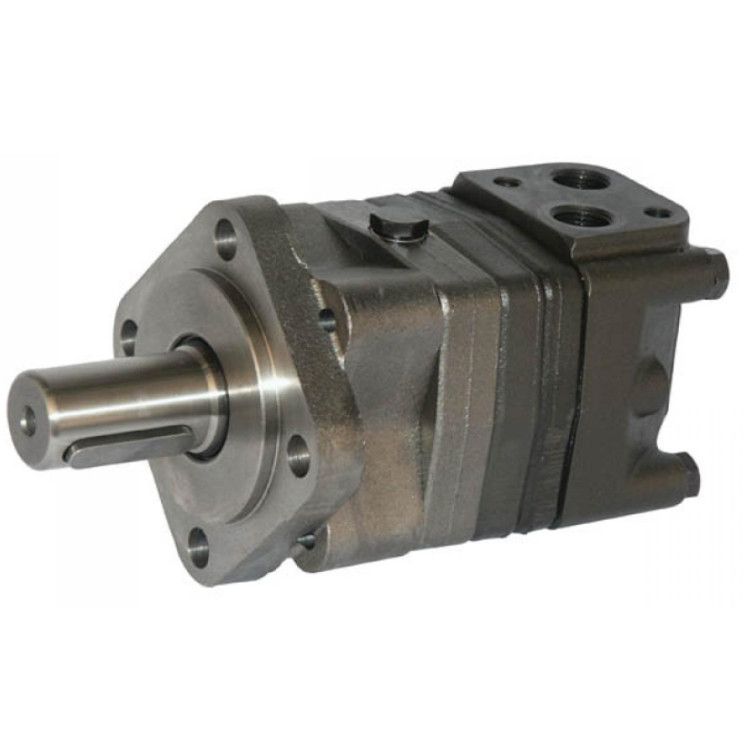

Danfoss OMS 315 cc hydraulic motor 32 mm shaft

Danfoss OMS 315 cc hydraulic motor 32 mm shaft

• Application: Agricultural, forestry and construction machinery, drilling tools, heavy lifting equipment and winches, and ship and yard equipment
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical features:

• Unit: per piece
• Type: OMS
• Original number: 151F0506
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 32mm
• Axle type: straight
• max. capacity: 75 l/min
• Nominal pressure: 200 bar
• max. working pressure: 240 bar
• Peak pressure: 260 bar
• Rated torque: 820 Nm
• Dimension L1: 164.9mm
• Dimension L2: 186.9mm
• Dimension L3: 209.2mm
• Flange type (optional): 4 hole flange, fitting edge 82.55 mm
• Engine Flange: 4 Hole Standard Flange
• Stroke volume : 314.9 cc
• max speed: 240RPM
• minimum speed: 5RPM
• Power: 15kW
