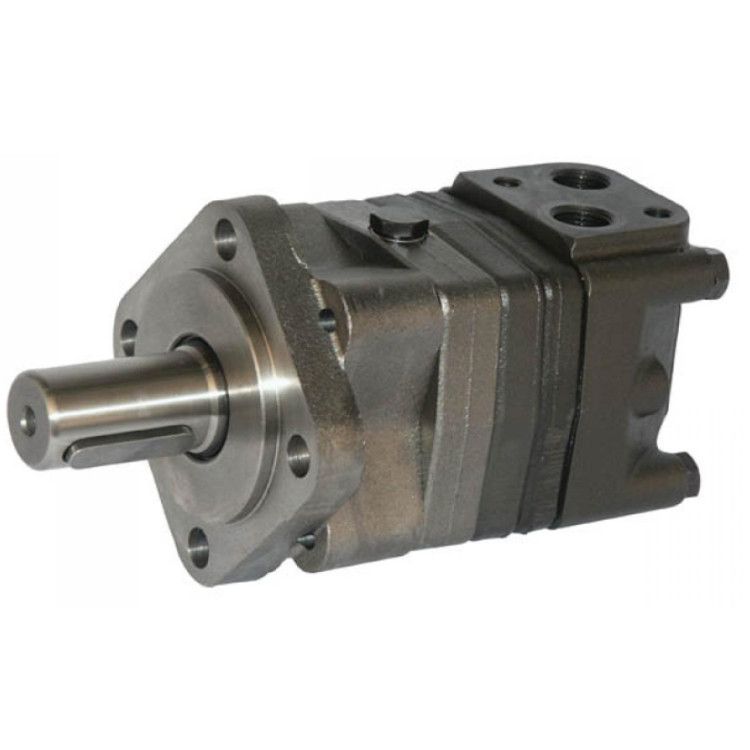

Danfoss OMS 400 cc hydraulic motor 32 mm shaft

€843.83
In stock

Danfoss OMS 400 cc hydraulic motor 32 mm shaft

  • Application: Agricultural, forestry and construction machinery, drilling tools, heavy lifting equipment and winches, and ship and yard equipment
  • Speed: low
  • Torque: high
  • Leakage connection: included. This allows motors to be connected in series.
  • Combinations: various flange and shaft combinations possible

Technical features:

  • Unit: per piece
  • Type: OMS
  • Original number: 151F0605
  • Connection C: 1/4" BSP
  • Connection D: 1/2" BSP
  • Shaft diameter: 32mm
  • Axle type: straight
  • max. capacity: 75 l/min
  • Nominal pressure: 160 bar
  • max operating pressure: 190 bar
  • Peak pressure: 210 bar
  • Rated torque: 860 Nm
  • Dimension L1: 178.5mm
  • Dimension L2: 200.5mm
  • Dimension L3: 222.8mm
  • Flange type (optional): 4 hole flange, fitting edge 82.55 mm
  • Engine Flange: 4 Hole Standard Flange
  • Stroke volume: 393 cc
  • max speed: 190RPM
  • minimum speed: 5RPM
  • Power: 11kW
