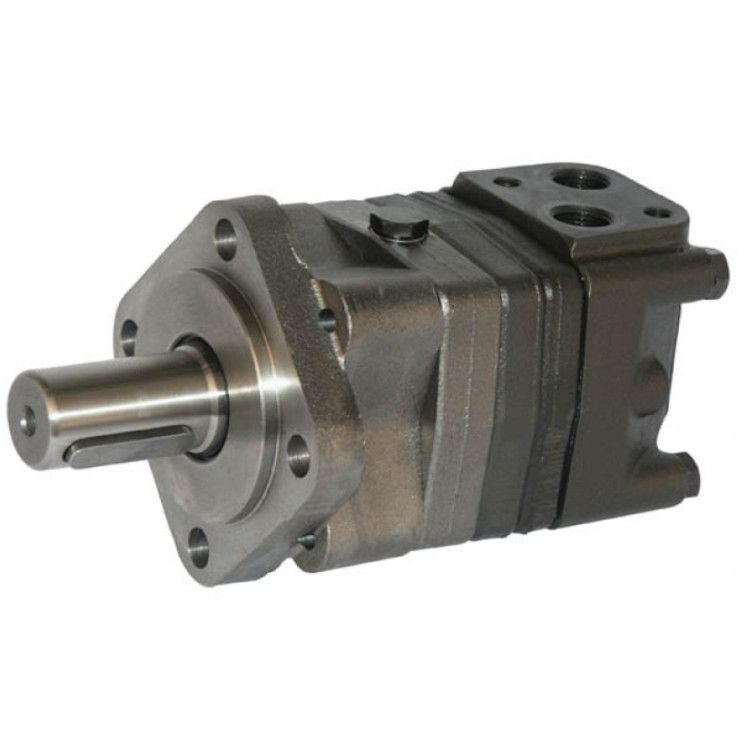

Danfoss OMS 80 cc hydraulic motor 32 mm shaft

Danfoss OMS 80cc hydraulic motor 32mm shaft

• Application: Agricultural, forestry and construction machinery, drilling tools, heavy lifting equipment and winches, and ship and yard equipment
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical features:

• Unit: per piece
• Type: OMS
• Original number: 151F0500
• Connection C: 1/4" BSP
• Connection D: 1/2" BSP
• Shaft diameter: 32mm
• Axle type: straight
• max. capacity: 65 l/min
• Nominal pressure: 210 bar
• max. working pressure: 275 bar
• Peak pressure: 295 bar
• Rated torque: 240 Nm
• Dimension L1: 124.1mm
• Dimension L2: 146.1mm
• Dimension L3: 168.4mm
• Flange type (optional): 4 hole flange, fitting edge 82.55 mm
• Engine Flange: 4 Hole Standard Flange
• Stroke volume: 80.5 cc
• max. speed: 810RPM
• minimum speed: 10RPM
• Power: 15.5kW
