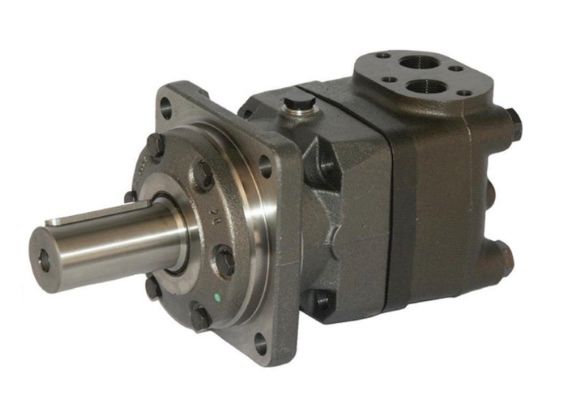

Danfoss OMT 200cc hydraulic motor 40mm shaft

Danfoss OMT 200 cc hydraulic motor 40 mm shaft

• Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
• Speed: low
• Torque: high
• Leakage connection: included. This allows motors to be connected in series.
• Combinations: various flange and shaft combinations possible

Technical specification:

• Unit: per piece
• Type: OMT
• Connection C: 3/4" BSP
• Leak Connection: 1/4" BSP
• Shaft diameter: 40mm
• Axle type: straight
• max. capacity: 125 l/min
• Nominal pressure: 200 bar
• max. working pressure: 240 bar
• Peak pressure: 280 bar
• Dimension L1: 21.5mm
• Housing length: 195mm
• Flange type: SAE A flange 2 and 4 hole
• Engine flange : SAE flange 2 hole
• Thread E: M8
• Stroke volume : 201.4 cc
• max speed: 625RPM
• minimum speed: 9RPM
• Power: 33.5kW
