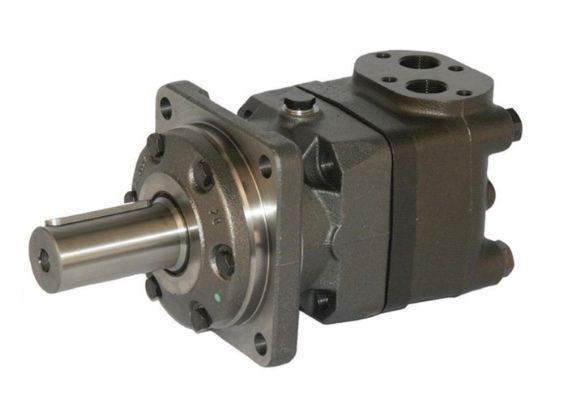

Danfoss OMT 500cc hydraulic motor 40mm shaft
€1,572.94
In stock
Danfoss OMT 500 cc hydraulic motor 40 mm shaft
- Application: sweeping brushes, loading wagon, floor chain drives, spreader, lawn mower, winches and agricultural, forestry and construction machinery
- Speed: low
- Torque: high
- Leakage connection: included. This allows motors to be connected in series.
- Combinations: various flange and shaft combinations possible
Technical specification:
- Unit: per piece
- Type: OMT
- Connection C: 3/4" BSP
- Leak Connection: 1/4" BSP
- Shaft diameter: 40mm
- Axle type: straight
- max. capacity: 125 l/min
- Nominal pressure: 160 bar
- max working pressure: 180 bar
- Peak pressure: 210 bar
- Dimension L1: 61.5mm
- Housing length: 235mm
- Flange type: SAE A flange 2 and 4 hole
- Engine flange : SAE flange 2 hole
- Thread E: M8
- Stroke volume : 523.6 cc
- max speed: 240RPM
- minimum speed: 6RPM
- Power: 26.5kW
