Distribution motor Casappa 3-way 17-49 l/min
€1,291.40
Out of stock

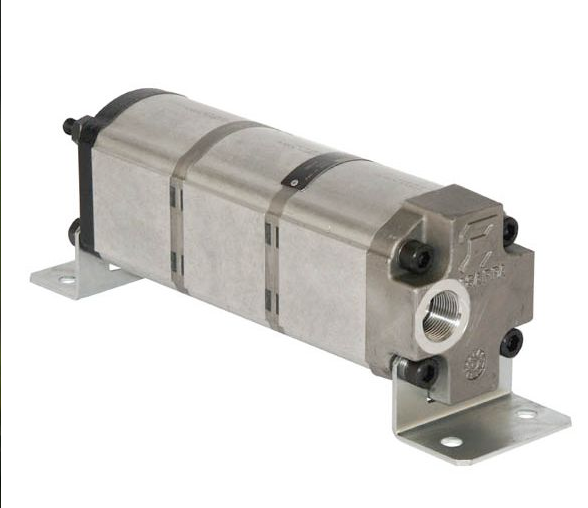

Distribution motor Casappa 3-way 17-49 l/min
| 17-49 l/min | The liters per section must be between these values |
| Details: | compact design accurate distribution |
| Advantages: | small installation space widely applicable |
| Scope of application: | parallel cylinders parallel motors |
| Features: | optional built-in safety |
| Technical information: | With a well-chosen distribution motor, 98% synchronization is possible |
| Unit: | per piece |
| Pressure (bar): | P1 (continuous) = 270, P3 (peak) = 310 |
| Remark: | available on request with geïIntegrated correction valves |
| A (mm) (mm): | 68 |
| Outlet: | 1/2" |
| D (mm) (mm): | 66 |
| Inlet: | 3/4" |
| Number of stairs: | 3 |
| P1 (bar): | 250 |
| N max. (rev/min): | 3460 |
| N min. (rev/min): | 1175 |
| Q (cc/rev): | 14.3 |
| Item code: | PLD20314 |
| Brand: | Casappa |
