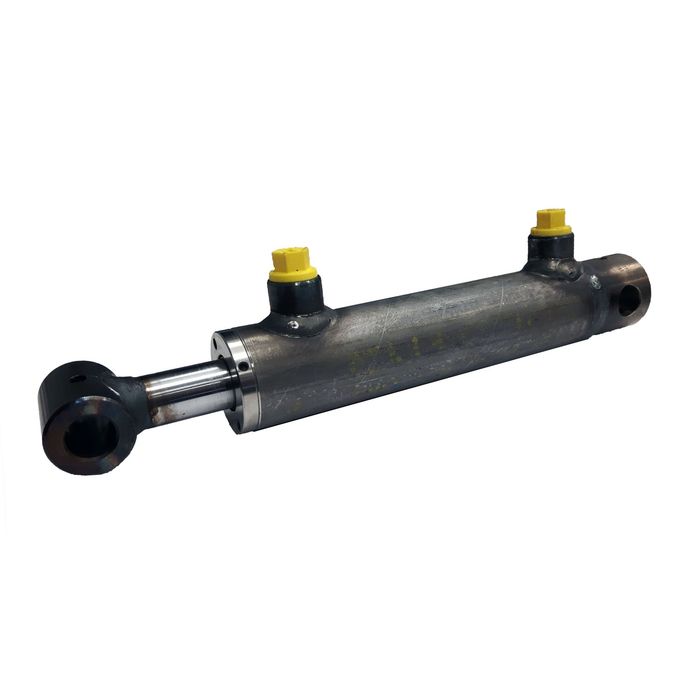

Double-acting cylinder 100x50x1200 with mounting
€499.16
In stock
Double-acting cylinder 100x50x1200 with mounting
Technical properties:
- Operating pressure: 200 bar
- Maximum pressure: 300 bar
- Temperature: -30°C to 90°c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: chrome 20 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Max. operating speed: 0.5 m/s
Technical specifications:
- Dimension ØA (Rod): 50mm
- Dimension Øb (bore): 100mm
- Dimension Z (Stroke): 1200mm
- Dimension E: 1425mm
- Dimension C: 28mm
- Dimension D: 30.5mm
- Dimension F: 70mm
- Dimension G: 115mm
- Dimension H: 75mm
- Dimension I: 60mm
- Dimension J: 48mm
- Dimension K: 60mm
- Dimension L: 17mm
- Port (M): 1/2" BSP
- Volume: 9.43 L
- Weight: 57.1 kg
